Test 9: Driver's Seat Back Motor Resistance

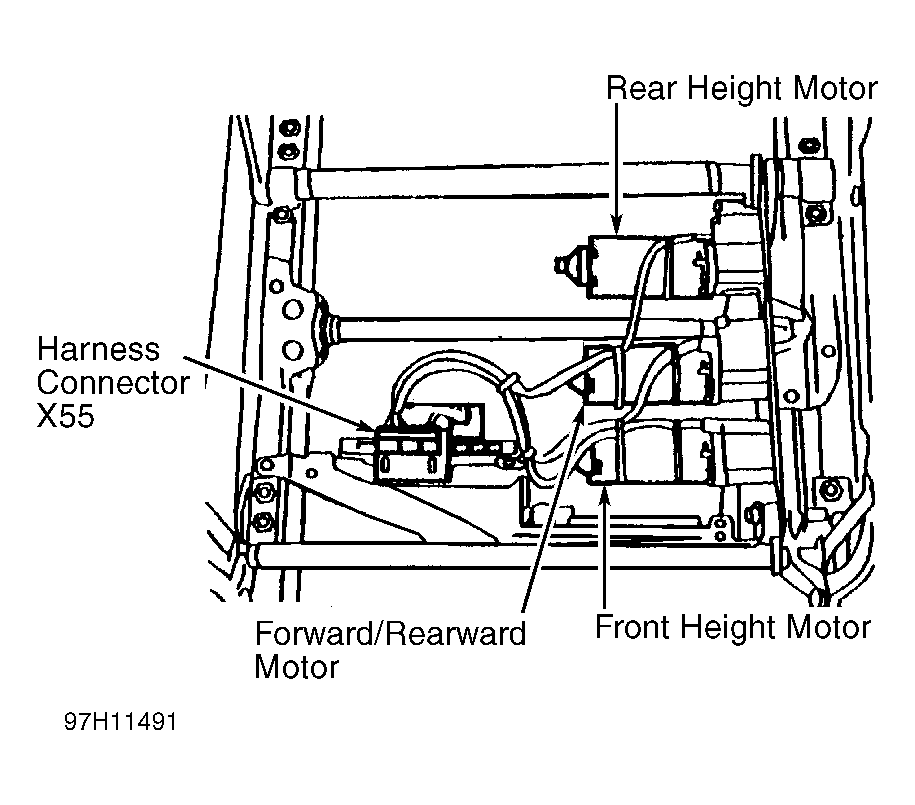

Disconnect harness connector X55 under driver's seat. See Figure . Measure resistance between terminals No. 1 and 2 at harness connector X55 (motor side). If resistance is .5-15.0 ohms, driver's seat back motor resistance is okay at this time. If resistance is not .5-15.0 ohms, check wiring. See WIRING DIAGRAMS  . If wiring is okay, replace driver's seat back motor.
