Removing and installing taillamp in trunk lid - AR82.10-P-4915A

MODEL 208, 210.0 /6

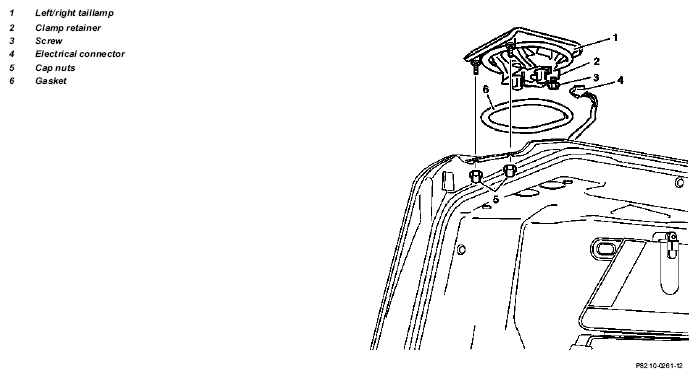

Fig 1: Identifying Taillamp In Trunk Lid Remove/Install Components

	Removal, installation
1	Screw off cap nuts (5)
2	Remove clamp retainer (2)	Unscrew screw (3) on clamp retainer (2) only far enough to release clamp retainer and thereby release taillamp (1) from trunk lid. Installation:  ↓ First attach clamp retainer (2) to sheet metal crimp on installation opening and tension lightly. Then uniformly tighten cap nuts (5) and screw (3) for clamp retainer (2).
3	Remove taillamp (1) from trunk lid together with gasket (6)	Installation:  ensure that gasket is in good condition and properly seated
4	Disconnect electrical connector (4) from taillamp
5	Reinstall in opposite order
