Removing and installing radio/cellular telephone combination antenna - AR82.62-P-8110A

MODEL 208.4

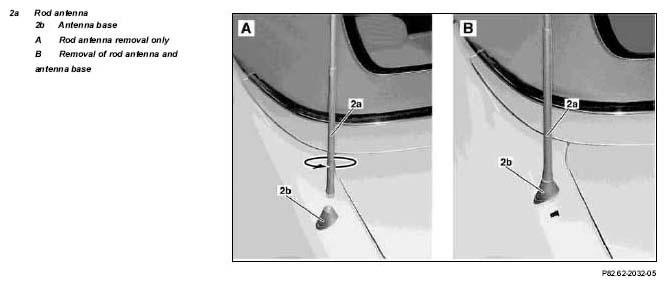

Fig 1: Identifying Radio/Cellular Telephone Combination Antenna Remove/Install Components

	Removal, installation
1	Remove antenna splitter	Only when removing complete antenna. Depending on the scope of work it is possible to remove the rod antenna (2a) from the antenna base (2b) without removing the antenna splitter (see figure A).	AR82.70-P-8953A
2	Remove combination antenna (2a) and antenna base (2b)
3	Install in opposite order
