Removing and installing license plate lamps - AR82.10-P-5161EB

MODEL 208, 210.0 /6

Illustrated on model 210

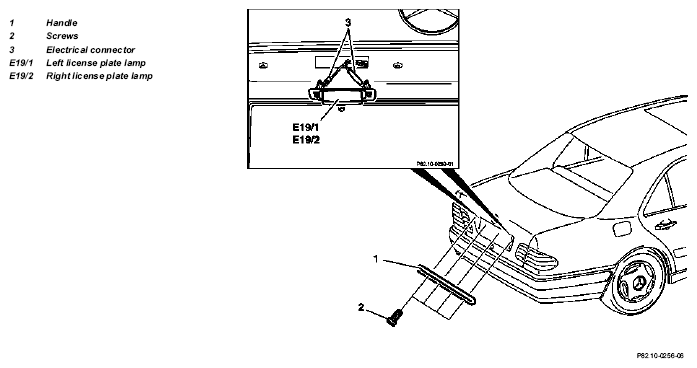

Fig 1: Identifying License Plate Lamp Remove/Install Components

	Removal, installation
1	Unscrew screws (2) and remove handle (1) from trunk lid
2	Unclip license plate lamp (E19/1 or E19/2)	To unclip insert a flat tool such as plastic wedge between the license plate lamp and trunk lid Installation:  Ensure that gasket is in good condition and properly seated
3	Disconnect electrical connectors (3)
4	Reinstall in opposite order
