Removing and installing headlamp cleaning system washing water reservoir - AR82.15-P-6200K
MODEL 208 with CODE (600a) Headlamp cleaning system
| Removal, installation | |||
| 1 | Move engine hood to upright position | AR88.40-P-1000F | |

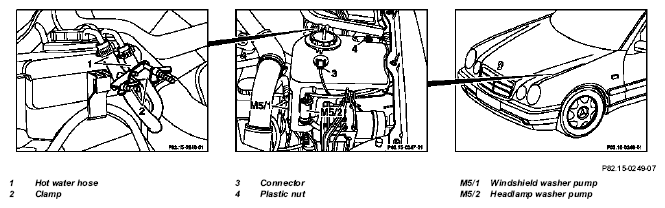

| 2 | Disconnect connector (3) on washing water indicator | ||
| 3 | Attach clamp (2) to hot water hoses (1) for washing water heating spiral | Figure | |
| 4 | Remove hot water hoses (1) and unclip washing water reservoir | ||
| 5 | Unscrew plastic nuts (4) and remove washing water reservoir from mount | ||
| 6 | Remove windshield washer pump (M5/1) and unclip feed lines from washing water reservoir | ||
| 7 | Remove headlamp washer pump (M5/2) | ||
| 8 | Remove washing water reservoir upward | ||
| 9 | Reinstall in opposite order |
