Removing and installing handset in armrest or stowage compartment - AR82.70-P-8915EE
MODEL 208 as of 1.7.00 with CODE (853) MB standard cellular telephone

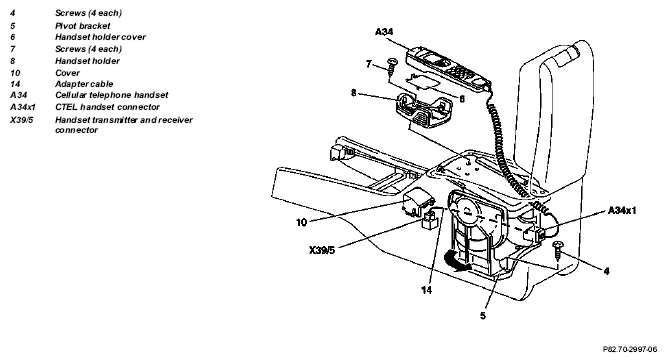

Fig 1: Identifying Handset In Armrest Or Stowage Compartment Remove/Install Components - Model 208 As Of 1.7.00 With Code (853) (1 Of 2)

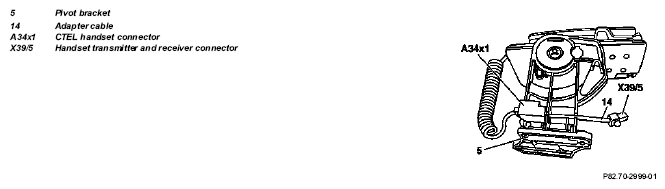

Fig 2: Identifying Handset In Armrest Or Stowage Compartment Remove/Install Components - Model 208 As Of 1.7.00 With Code (853) (2 Of 2)
| Removing, installing | |||
| 1 | Pull off cover (10) | ||
| 2 | Disconnect handset transmitter and receiver connector (X39/5) | ||
| 3 | Unscrew screws (4) and turn pivot bracket (5) to left (arrow) and lift out | ||
| 4 | Separate CTEL handset connector (A34x1) and remove adapter line (14) | ||
| 5 | Remove handset from handset holder (8) | ||
| 6 | Unclip handset holder cover (6) | ||
| 7 | Unscrew bolts (7) | ||
| 8 | Remove handset holder (8) | ||
| 9 | Install in the reverse order |
