Removal, installation |
|
|
| 1 |

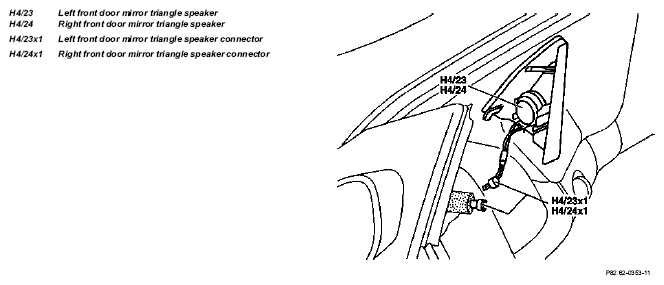

Unclip covering with speaker (H4/23 and H4/24) on mirror triangle |
|
|
| 2 |
Disconnect connector (H4/23x1 and H4/24x1) |
 Installation:
Position foam sleeves over speaker connectors |
|
| 3 |
Unclip speaker (H4/23 and H4/24) |
|
|
| 4 |
Reinstall in opposite order |
|
|
| 5 |
Check for proper function |
|
|
