Removing and installing front axle headlamp range adjustment sensor - AR82.10-P-4083B

MODEL 208 with CODE (612b) Xenon headlamp unit

Model 208

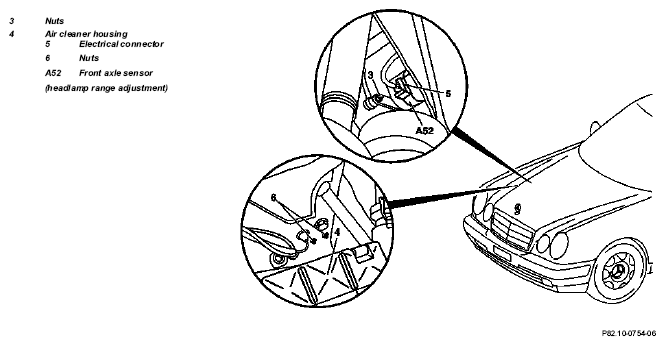

Fig 1: Identifying Front Axle Headlamp Range Adjustment Sensor Remove/Install Components

	Removal, installation
1	Open engine hood
2	Unscrew nut (6)
3	Remove right front wheel	The sensor is located in the wheelhouse on the upper right wishbone
4	Unscrew nut (3) and separate connecting rod from front axle sensor for headlamp range adjustment.
5	Disconnect electrical connector (5)
6	Remove front axle sensor (headlamp range adjustment) (A52)	After replacing the front axle sensor for headlamp range adjustment reprogram the zero position with the HHT
7	Reinstall in opposite order
