Removing and installing bracket for cellular telephone - AR82.70-P-8918EE

MODEL 208 as of 1.7.00 with CODE (854) MB cellular telephone

Bracket for cellular telephone in armrest or stowage compartment

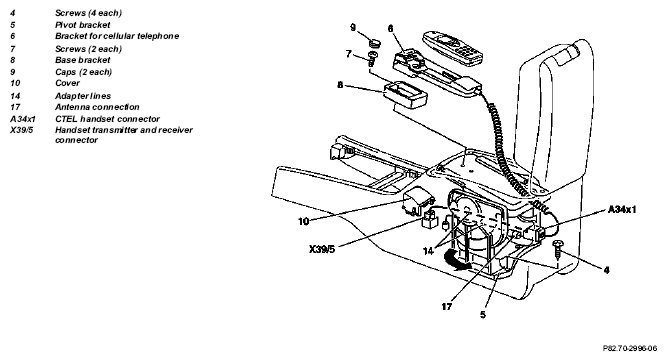

Fig 1: Identifying Bracket For Cellular Telephone Remove/Install - Model 208 As Of 1.7.00 With Code (854) (1 Of 2)

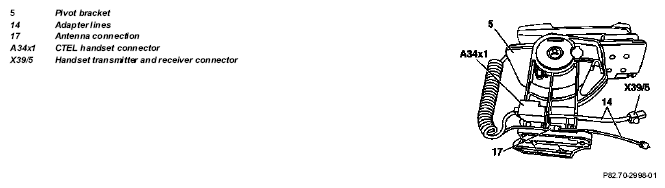

Fig 2: Identifying Bracket For Cellular Telephone Remove/Install - Model 208 As Of 1.7.00 With Code (854) (2 Of 2)

	Removing, installing
1	Remove cellular telephone from bracket (6)
2	Pull off cover (10)
3	Disconnect handset transmitter/receiver connector (X39/5) and antenna line
4	Unscrew screws (4) and turn pivot bracket (5) to left (arrow) and lift out
5	Disconnect handset transmitter/receiver connector (A34x1) and antenna connection (17) and unclip. Remove adapter lines (14)
6	Pull bracket for cellular telephone (6) out of base bracket (8)
7	Remove cap (9) out of base bracket (8)
8	Remove screws (7) out of base bracket (8)
9	Remove base bracket (8)
10	Install in the reverse order
