Removing and installing bracket for cellular telephone - AR82.70-P-8918E

MODEL 208 up to 30.6.00 with CODE (317) GSM cellular telephone (D2B)

Bracket for cellular telephone in armrest or stowage compartment

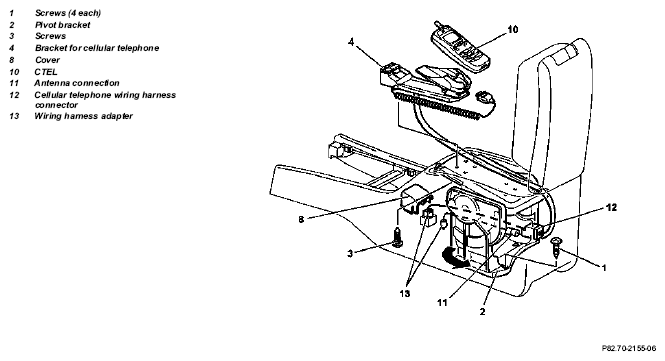

Fig 1: Identifying Bracket For Cellular Telephone Remove/Install Components - Model 208 Up To 30.6.00 With Code (317) (1 Of 3)

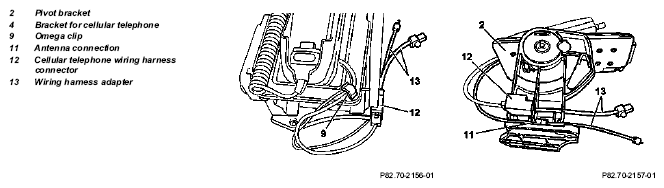

Fig 2: Identifying Bracket For Cellular Telephone Remove/Install Components - Model 208 Up To 30.6.00 With Code (317) (2 Of 3)

Fig 3: Identifying Bracket For Cellular Telephone Remove/Install Components - Model 208 Up To 30.6.00 With Code (317) (3 Of 3)

	Removing, installing
1	Remove cellular telephone (10) from bracket (4)
2	Remove cover (8)
3	Unscrew screws (1) and turn pivot bracket (2) to left (arrow) and lift out
4	Disconnect wiring harness adapter (13) from console
5	Disconnect cellular telephone connector (12), disconnect antenna connection (11) and unclip
6	Loosen omega clip (9)
8	Remove bracket (4)
9	Install in the reverse order
