Removing and installing antenna splitter - AR82.70-P-8953A

MODEL 208.4

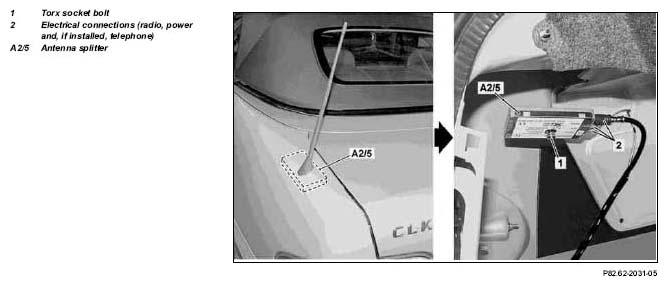

Fig 1: Identifying Antenna Splitter Remove/Install Components

	Removal, installation
1	Remove cover on rear center element
2	Fold back side covering in trunk	Do not remove
3	Loosen Torx socket bolt (1) on antenna splitter (A2/5)	Screw is secured against falling out
4	Disconnect electrical connectors (2) on antenna splitter
5	Install in opposite order
