Remove/install electric headlamp range adjustment motor - AR82.10-P-4082A
MODEL 208, 210 with CODE (612) Xenon headlamp unit

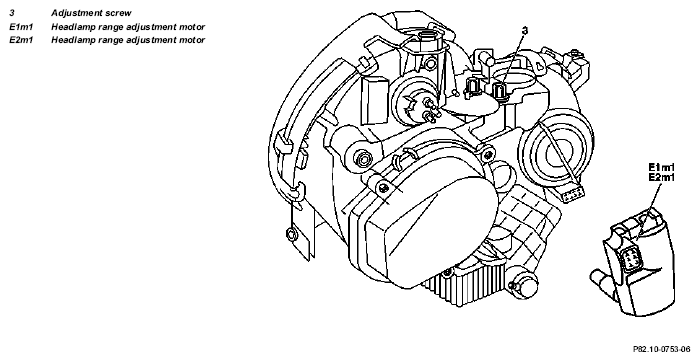

Model 208

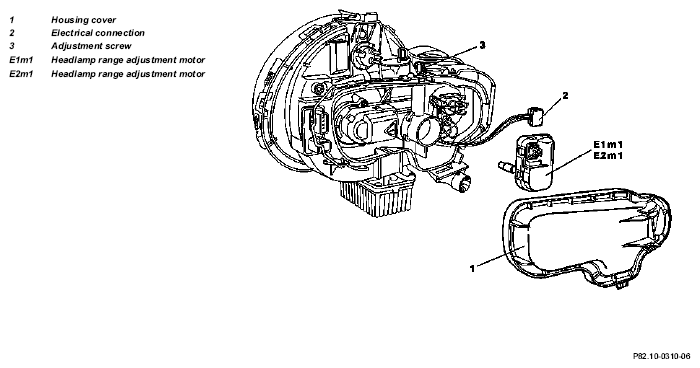

Model 210
| Remove/install | |||
| Risk of death caused by touching parts which conduct high voltages | Do not come into contact with parts that are under high voltage. Persons who have electronic implants (e.g. pacemakers) must not perform any work on the ignition system. | AS15.10-Z-0001-01A | |
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/fire hazard through highly flammable material in the area of damaged xenon bulbs. Risk of injury through UV light, hot components on xenon headlamps and glass splinters when xenon bulbs burst. Risk of poisoning through inhalation of mercury vapor and swallowing of or skin contact with toxic salts and mercury compounds. |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off complete lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure that the workplace is sufficiently ventilated. | AS82.10-Z-0001-01A | |
| 1 | Remove/install lamp unit | Model 208 | AR82.10-P-4730EE |
| Model 210 | AR82.10-P-4730EB | ||
| 2.1 | Remove housing cover (1) | Model 210 | |
| 3.1 | Unplug electrical connection (2) | Model 210 | |
| 4 | Turn headlamp range adjustment motor (E1m1, E2m1) to right | ||
| 5 | Turn adjustment screw (3) to left and remove headlamp range adjustment motor (E1m1, E2m1) | ||
| 6 | Install in the reverse order |
