Remove/install bulbs of headlamp unit - AR82.10-P-1201B
MODEL 208, 210 up to 31.5.99 with CODE (612) Xenon headlamp unit
Model 208
Model 210
| Remove/install | |||
| Risk of death caused by touching parts which conduct high voltages | Do not come into contact with parts that are under high voltage. Persons who have electronic implants (e.g. pacemakers) must not perform any work on the ignition system. | AS15.10-Z-0001-01A | |
| Risk of death
caused by high voltage levels present at xenon headlamps. Risk of explosion/risk of fire due to highly flammable materials in the area of damaged xenon bulbs Risk of injury from UV light, hot components at xenon headlamps and glass splinters when xenon bulbs crack Risk of poisoning from inhaling mercury vapors and from swallowing/skin contact with poisonous salts and mercury compounds |
Do not come into contact with parts that are under high voltage. Persons with active electronic implants (e.g. heart pacemakers) must never work on xenon headlamps. Switch off entire lighting system. Wear insulating safety shoes, safety glasses and protective gloves. Remove highly inflammable materials from the hazard area. Ensure the work area is adequately ventilated. | AS82.10-Z-0001-01A | |
| 1 | Remove lamp unit | Model 208 | AR82.10-P-4730EE |
| Model 210 | AR82.10-P-4730EB | ||

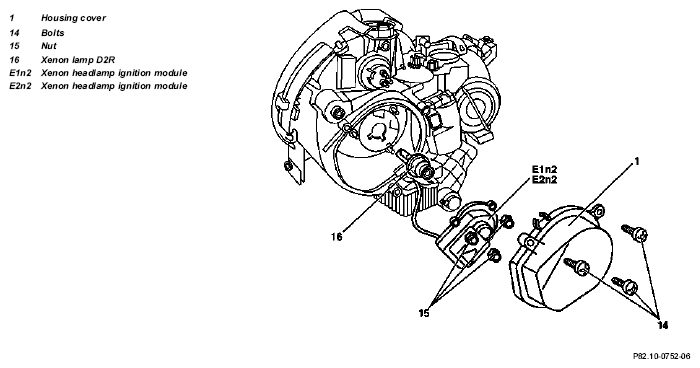

| 2.1 | Unscrew screws (14) and remove housing cover (1) | Model 208 | |

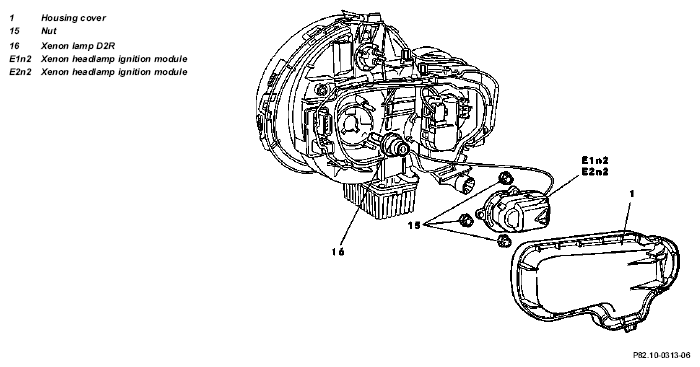

| 2.2 | Unclip housing cover (1) | Model 210 | |
| 3 | Unscrew nuts (15) and remove ignition modules (E1n2, E2n2) | ||
| 4 | Carefully remove xenon bulb D2R (16) | ||
| 5 | Install in the reverse order |
