| 1 |

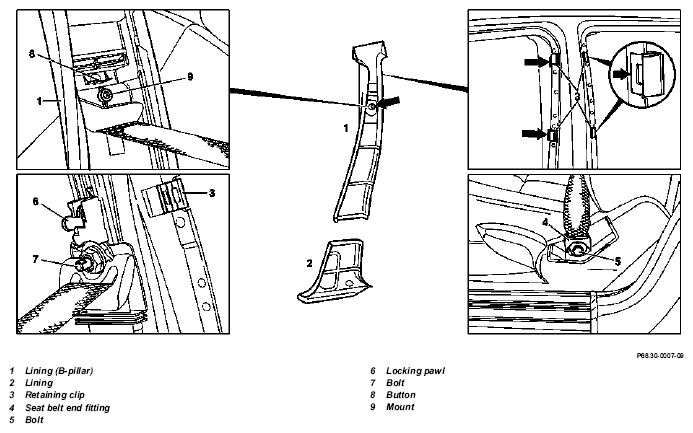

Pull of edge guard in area of B-pillar panelling (1) |
|
|
| 2 |
Detach retaining clips (3) on lining (1) with screwdriver |
|
|
| 3 |
Pull lining (1) up out of frame side member lining (2) |
|
|
| 4 |
Unscrew bolt (5) on seat belt end fitting (4) |
|
|
| 5 |
Pull seat belt out of lining (1) and put lining (1) down to side |
|
|
 |
Installation |
|
|
| 6 |
Check retaining clips (3, 4 each) at top of B-pillar |
|
|
| 7 |
Insert seat belt end fitting (4) through opening in lining (1) |
|
|
| 8 |
Insert lining (1) into insert section in lining (2) |
|
|
| 9 |
Insert bolt (7) and locking pawl (6) into mount (9) and button (8) on lining (1) |
|
|
| 10 |
Clip lining (1) onto retaining clips (3) |
|
|
| 11 |
Screw seat belt end fitting (4) onto front seat with bolt (5) so that it can move |
 |
*BA91.40-P-1001-01A |
| 12 |
Install edge guard on B-pillar |
|
|
| 13 |
Check adjustable belt guide fitting on B-pillar for proper operation |
It should be possible to adjust and arrest the belt guide fitting in 3 positions on the B-pillar (top - middle - bottom). |
|
