Removing and installing cover at gearshift lever - AR68.20-P-2310E
MODEL 202 with TRANSMISSION 722.4

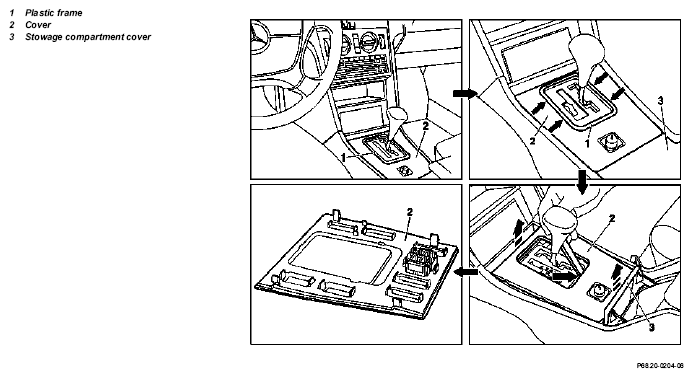

Fig 1: Identifying Cover At Gearshift Lever Remove/Install Components - Model 202 With Transmission 722.
| Removal, installation | |||
|---|---|---|---|
| 1 | Prise up plastic frame (1) with long wedge, reinstall | Figure | |
| 2.1 | Open cover, close (3) | Only on vehicles with front folding armrest (code 570) | |
| 3 | Press cover (2) out of catch in center console at front and rear with long wedge, press in | Figure | |
| 4 | Disconnect plug connectors on rear of cover, connect (2) | ||
| 5 | Put cover (2) down to one side | ||
| 6 | Reinstall in opposite order |
Special tool
