Removing, installing garage door opener - AR68.05-P-2000F
MODEL 202, 210 with CODE (491) USA version with garage door opener
Illustrated on model 210

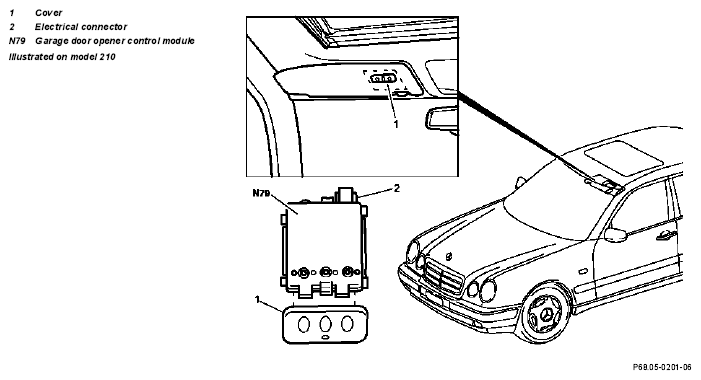

Fig 1: Identifying Garage Door Opener Components Location - Model 202, 210 With Code (491) USA Version With Garage Door Opener
| Removal, installation | |||
| 1 | Unclip cover (1) | ||
| 2 | Unhook mirror from sun visor | ||
| 3 | Unhook mirror mount on sun visor | ||
| 4 | Push garage door opener control module (N79) out to left | ||
| 5 | Disconnect electrical connector (2) | ||
| 6 | Remove garage door opener control module (N79) | ||
| 7 | Reinstall in opposite order |
