Removing, installing and disassembling rear shelf - AR68.30-P-4580E

MODEL 202

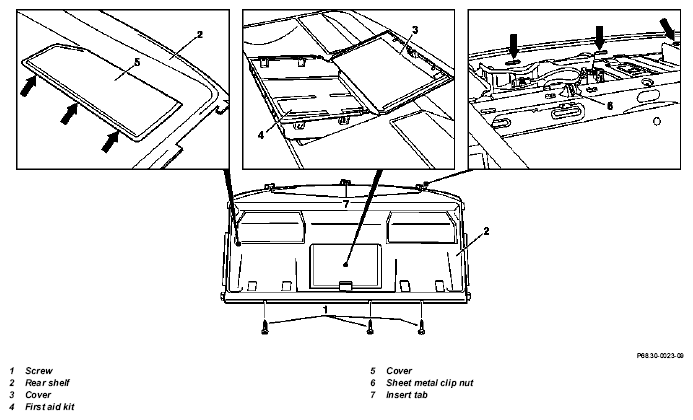

Fig 1: Identifying Rear Shelf Remove/Install Components - Model 202

	Removal
1	Remove rear seat and rear backrest		AR91.12-P-1700E
2	Remove rear head restraints		AR91.16-P-1770E
3	Remove lining on C-pillar		AR68.30-P-4490E
4	Remove screws (1, 3 each)
5	Lift rear shelf (2) at front and remove
	Disassembly
6	Open cover (3) above first aid kit (4)
7	Lift first aid kit (4) at front with long wedge and pull out	First aid kit (4) can also be removed with rear shelf (2) installed.	Figure
8	Lift cover (5) above rear speaker at front with long wedge and remove toward front	Cover (5) can also be removed with rear shelf (2) installed	Figure
	Assembly
9	Insert cover (5) with insert tabs in cutout in rear shelf (2) at rear and engage in front
10	Insert first aid kit (4) into cutout in rear shelf (2) at rear and engage at front
	Installation
11	Install sheet metal clip nuts (6, 3 each) on rear wall
12	Position rear shelf	Guide insert tabs (7) into rear wall at rear (arrows).
13	Screw in screws (1, 3 each)
14	Install lining on C-pillar		AR68.30-P-4490E
15	Install rear head restraints		AR91.16-P-1770E
16	Install rear seat and rear backrest		AR91.12-P-1700E

Special tool

Fig 2: Identifying Long Wedge (115 589 03 59 00)
