Detaching and attaching exhaust heat shields in steering area - AR46.20-P-0500-07A

  1. Detach exhaust heat shield (105d).
  2. Unscrew cable bracket (106) on body.
  3. Detach exhaust heat shield (23u) from steering gear.
  4. Install in reverse order.

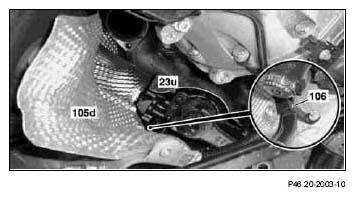

    Fig 1: Identifying Exhaust Heat Shield And Cable Bracket
    G04713872
