Removing, installing fan shroud - AR20.40-P-6800HA

ENGINE 111, 605, 606 in MODEL 124

ENGINE 606 in MODEL 140

ENGINE 111 in MODEL 170

ENGINE 111, 604, 605 in MODEL 202

ENGINE 111 in MODEL 208

ENGINE 111, 602.982, 604, 605, 606 in MODEL 210

ENGINE 111 in MODEL 163

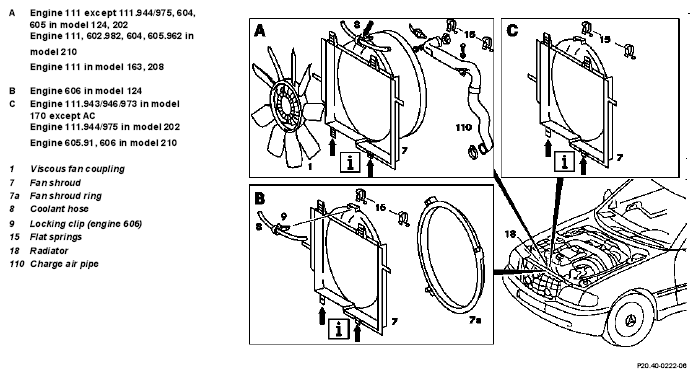

Fig 1: Locating Radiator, Fan Shroud And Fan - Engine 111, 604, 605 In Model 202

	Removal, installation
1.1	Remove charge air pipe (110)	Engine 605.960 in model 202, engine 602.982, 605.962 in model 210	AR09.41-P-1311H
2.1	Release fan shroud ring (7a) from the locking studs by turning at the fan shroud, remove	Engine 606 in model 124, 140 Installation:  when installing, ensure that fan shroud ring is properly located in the locking studs of the fan shroud.
3	Remove viscous fan coupling (1)	Engine 604 and 605 in model 124, 202 Engine 111 in model 163, 170, 208 Engine 111, 604, 605, 606 in model 210 ↓
		Engine 111	AR20.40-P-5660A
		Engine 604	AR20.40-P-5660HA
		Engine 605, 606 in model 124 Engine 606.961 in model 140 Engine 605 in model 202 Engine 602.982, 605, 606.912 in model 210	AR20.40-P-5660HB
4.1	Detach coolant expansion reservoir	Model 170
5	Remove fan shroud (7), take out upwards	on engine 604/605 in models 124, 202 together with viscous fan coupling Model 163: remove screws of flat springs and take off flat springs. Installation:  insert retaining lugs (arrows) of the fan shroud into the mounts at the radiator. Align fan shroud to the fan.
6	Install in the reverse order
