Remove/install viscous fan clutch - AR20.40-P-5660HW

ENGINE 601 in MODEL 124, 201

ENGINE 602 in MODEL 124, 201

ENGINE 603 in MODEL 124, 126, 140

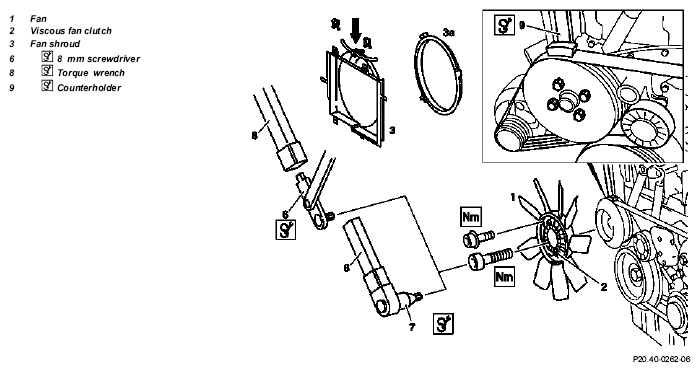

Fig 1: Identifying Viscous Fan Clutch Removal/Install Components - Engine 602 In Model 124, 201

	Remove, Install
1.1	Remove the fan shroud (3) and put it above the fan (1)	For vehicles with a one-piece fan shroud
1.2	Turn the fan shroud ring (3a) from the locking studs on the fan shroud, remove together with the fan shroud	In case of vehicles with split fan shroud Installation: Ensure that the fan shroud ring (3a) is correctly located in the locking studs of the fan shroud (3).
2	Insert the counterholder (9) at the coolant pump belt pulley		Figure
3	Unscrew the viscous fan clutch (2) with the fan (1) and remove	Loosen the center screw with a screw driver (6) or with a screw driver bit (7) and torque wrench (8).	Figure
			Fig 5
			Figure
		Remove the viscous fan clutch together with the fan shroud.
			*BA20.40-P-1002-01A
			*BA20.40-P-1003-01A
4	Unscrew the fan (1) at the viscous fan clutch (2)	Installation: The installation position of the fan is marked by the lug on the fan ring and by the marking "VORNE FRONT" (in the direction of travel on the fan ring).
			*BA20.40-P-1001-01A
5	Install in the reverse order

FAN, FAN CLUTCH

Number	Designation		Engines 601, 602 except 602.98, 603
BA20.40-P-1001-01A	Bolt of fan to viscous fan clutch	NM	10
BA20.40-P-1002-01A	Tighten bolt between viscous fan clutch and bearing liner using approved special tool	NM	40
BA20.40-P-1003-01A	Tighten bolt between viscous fan clutch and bearing liner using screwdriver and torque wrench	NM	45

Fig 2: Identifying Counterholder (603 589 00 40 00)

Fig 3: Identifying Screwdriver (120 589 14 07 00)

Fig 4: Identifying Torque Wrench (001 589 72 21 00)

Fig 5: Identifying Screwdriver Bit (103 589 01 09 00)
