Removing and installing combination switch - AR54.25-P-2800CS
MODEL 129
| Removal, installation | |||
| 1 | Remove steering wheel | ra46001260610x | |
| 2 | Remove cover below instrument panel | ra68001290150x | |
| 3.1 | Remove contact spiral | Model 129 as of 1.2.93 | ra46001248300x |

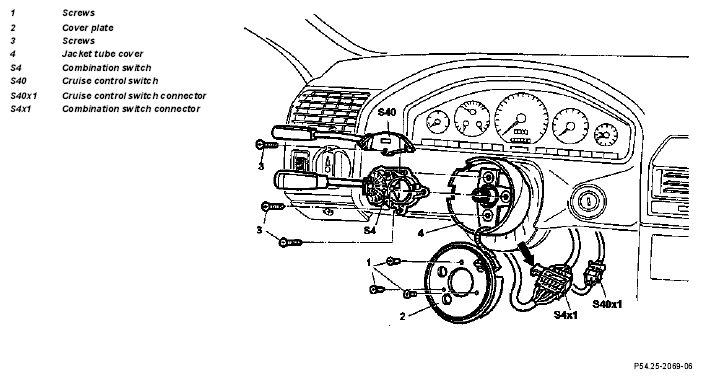

| 4 | Unscrew screws (1) | ||
| 5 | Remove cover plate (2) | ||
| 6 | Unscrew screws (3) | ||
| 7 | Disconnect combination switch connector (S4x1) by moving bracket (arrow) | ||
| 8 | Disconnect cruise control switch connector (S40x1) | Unclip clips from lead passage on brace bracket below steering column. |
|
| 9 | Remove jacket tube cover (4) | ||
| 10 | Remove cruise control switch (S40) from jacket tube cover (4) | ||
| 11 | Remove combination switch (S4) from jacket tube cover (4) | ||
| 12 | Install in the reverse order |
