Removing and installing door liner on front door - AR72.10-P-1000EA
MODEL 202 as of 1.7.97

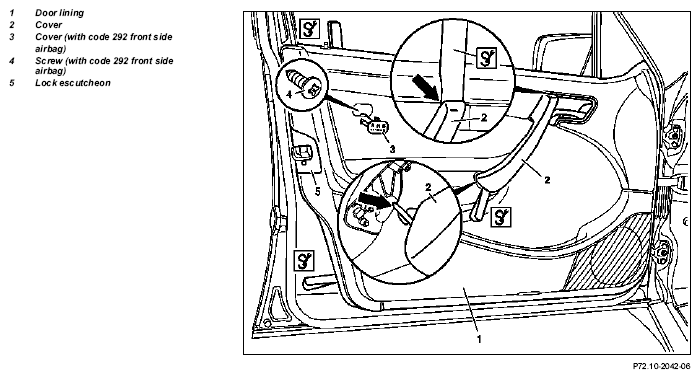

Fig 1: Identifying Door Liner On Front Door Remove/Install Components - Model 202 As Of 1.7.97 (1 Of 2)
Fig 2: Identifying Door Liner On Front Door Remove/Install Components - Model 202 As Of 1.7.97 (2 Of 2)
REVISIONS
| 28.6.99 | Removal procedure for inner door handle cover changed | Steps 2 and 3 |
| Removing, installing | |||
| To avoid damaging the door liner, grind assembly wedge before use so that it coincides with the cover (2) width (arrow) | |||
| 1 | Open crank window | ||
| 2 | Press cover (2) out of catch with installation wedge at top | ||
| Figure | |||
| 3 | Press cover (2) out of catch with installation wedge at bottom and remove | ||
| 4 | Unclip cover (3) and unscrew screw (4) | With code 292 (front side airbag) | |
| 5 | Unscrew screw on lock escutcheon (5) and remove lock escutcheon downwards | ||
| 6 | Remove screws (6) | ||
| 7 | Press door lining (1) off inner door panel at bottom, front and rear using assembly wedge | Figure | |
| 8 | Lift door lining (1) out of retaining clips at the top of the sealing rail using assembly wedge and at the same time pull away from the inner door panel | Figure | |
| 9 | Unhook control cable on interior door control | ||
| 10 | Put down door lining (1) | ||
| 11 | Check films, clips and sheet-metal nuts (arrows) on inner door panel and replace if necessary. | *BR00.45-Z-1004-02A | |
| 12 | Check clips on door lining and replace if necessary | ||
| 13 | Install in reverse order |
Special tool
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1004-02A | Adhesives | A 001 989 30 71 |
