Removing and installing outside temperature indicator sensor - AR54.30-P-6341EA

MODEL 202, 210 up to 30.5.96 with CODE (240a) Outside temperature indicator

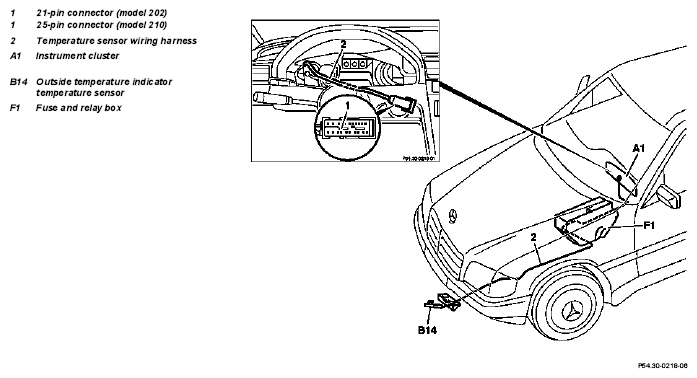

The figure shows the routing of the wires in the model 202 sedan. The schematic for the wire routing and location of the components is also applicable for model 210 and the T-model.

Fig 1: Identifying Outside Temperature Indicator Sensor Components - Model 202, 210 Up To 30.5.96 With Code (240A)

	Removal
	Outside temperature indicator sensor Location / Function		GF54.30-P-4104A
1	Disconnect ground lead from battery	On model 210 insulate the ground lead with cable terminal to prevent unintentional contact between disconnected ground lead and ground point W10	AR54.10-P-0003A
2	Unclip fuse boxes or fuse blocks in fuse and relay box (F1) and remove
3	Remove cover below instrument panel (driver's side)	Model 202	AR68.10-P-1500E
		Model 210	AR68.10-P-1500F
4	Remove instrument cluster (A1)		AR54.30-P-6015EA
5.1	Open installation flap for left fog lamp	Model 210
6.1	Unclip outside temperature indicator temperature sensor (B14) below front bumper and tie back	Model 202 Wiring harness with temperature sensor remains in vehicle
6.2	Unclip outside temperature indicator temperature sensor (B14) in installation compartment for left fog lamp and tie back	Model 210 Wiring harness with temperature sensor remains in vehicle
7	Open 21-pin or 25-pin connector (1) for instrument cluster (A1), disconnect coding section A (wire color code A1 green and A2 brown) from connector strip, insulate and tie back
	Installation
8	Guide wiring harness (2) for new outside temperature indicator temperature sensor (B14) through fuse and relay box (F1), route parallel to left headlamp wiring harness and fasten
9	Clip in outside temperature indicator temperature sensor (B14)	On model 202 tie excess length on new wiring harness back into wiring duct and on model 210 tie back into installation compartment for left fog lamp
10.1	Close installation flap for left fog lamp	Model 210
11	Connect coding section A (wire color code A1 green and A2 brown) to connector strip and close 21-pin or 25-pin connector
12	Reinstall instrument cluster (A1)		AR54.30-P-6015EA
13	Reinstall cover below instrument panel	Model 202	AR68.10-P-1500E
		Model 210	AR68.10-P-1500F
14	Clip fuse boxes or fuse blocks into fuse and relay box (F1)
15	Reconnect ground lead to battery		AR54.10-P-0003A
