Removing and installing instrument cluster - AR54.30-P-6015EA

MODEL 202, 208, 210, 129

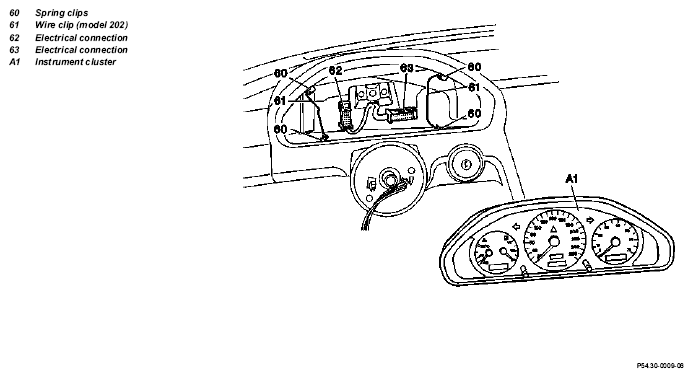

Fig 1: Identifying Instrument Cluster Remove/Install Components - Model 202, 208, 210, 129

	Removal, installation
1	Disconnect ground cable of battery	On model 210, insulate the cable terminal of the ground lead to prevent unintentional contact between the disconnected ground lead and ground point W10	AR54.10-P-0003A
2.1	Remove steering wheel	Caution when handling the airbag unit. Improper handling may result in damage to the airbag unit
		Vehicles without adjustable steering wheel	AR46.10-P-0100B
2.2	Pull steering wheel completely out	Vehicles with adjustable steering wheel
3	Pull out instrument cluster	Do not damage the dashboard	AR54.30-P-6015-01Z
		Installation:  Press in instrument cluster evenly
4	Unlock and remove electrical connections (62, 63)
5	Install in the reverse order

Fig 2: Identifying Extractor Hook (140 589 02 33 00)
