Removing and installing fuse and relay box - AR54.15-P-1255CT
MODEL 129 as of 1.9.95

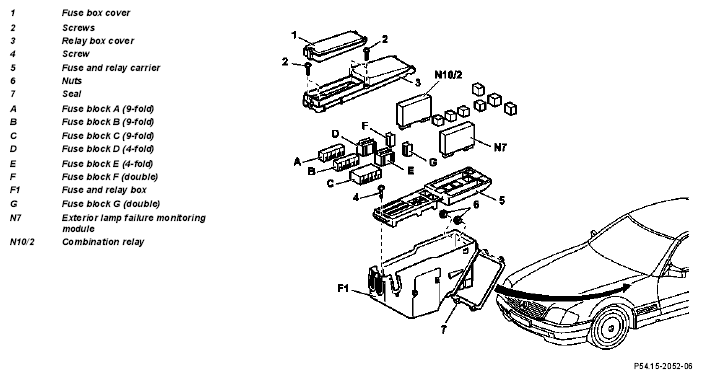

| Removal, installation | |||
| 1 | Disconnect ground cable of battery | AR54.10-P-0003A | |
| 2 | Remove cover (1) from fuse box | ||
| 3 | Unscrew screws (2) | ||
| 4 | Remove relay box cover (3) | ||
| 5 | Remove all relays and lamp failure monitoring module (N7) | AR54.15-P-1300CS | |
| 6 | Unscrew screw (4) | ||
| 7 | Remove fuse and relay carrier (5) together with fuse blocks, relay carriers and combination relay (N10/2) | ||
| 8 | Unclip fuse blocks (A, B, C, D, E, F, G) | ||
| 9 | Unclip all relay carriers | ||
| 10 | Unlock connectors from combination relay (N10/2) and disconnect | ||
| 11 | Route connectors of combination relay (N10/2) and lamp failure monitoring module (N7) out of fuse and relay carrier (5) | ||
| 11 | Remove all leads from relay carriers and fuse blocks | AR54.15-P-1255-01CT | |
| 12 | Disconnect all connectors in fuse box | ||
| 13 | Separate electrical connectors and connections in engine or component compartment and in passenger compartment or disconnect | ||
| 14 | Carefully move connected fuse blocks and relay carriers, disconnected or removed leads and wiring harnesses out of fuse and relay box (F1) | ||
| 15 | Unscrew nuts (6) | ||
| 16 | Remove fuse and relay box (F1) from component compartment | ||
| 17 | Install in the reverse order |
