Removing and installing battery - AR54.10-P-0005GC
MODEL 168
| Removal, installation | |||
|---|---|---|---|
| Explosion hazard
from explosive gas. Danger of poisoning and acid burns
when battery acid is swallowed. Danger of acid burns to skin and eyes from battery acid or when handling damaged lead-acid batteries. |
Fire, sparks, naked flame and smoking prohibited. Wear safety gloves, safety clothing and safety glasses which protect against acid. Only pour battery acid into suitable, appropriately marked containers. |
AS54.10-Z-0001-01A | |
| Notes on battery | All models | AH54.10-P-0001-01A | |
| 1 | Remove ignition/glow start key | ||
| 2 | Open battery cover in front passenger-side footwell | ||
| 3 | Connect quiescent current preservation unit | *WH58.30-Z-1012-09A | |

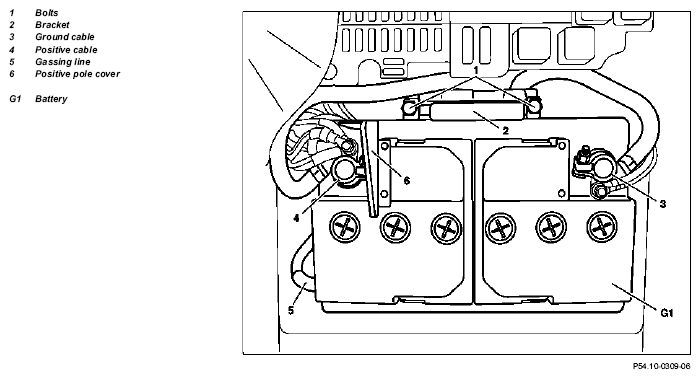

| 4 | Remove bracket (2) | ||
| 5 | Disconnect ground cable (3) on battery (G1) | AR54.10-P-0003A | |
| 6 | Disconnect positive cable (4) | ||
| 7 | Disconnect gassing line (5) at battery (G1) | ||
| 8 | Take out battery (G1) | ||
| Dispose of the battery | All models | OS54.10-P-0001-01Z | |
| 9 | Reinstall in opposite order |
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1012-09A | Quiescent current retention unit |
