Removing and installing battery - AR54.10-P-0005EA

MODEL 170, 202, 208, 210, 129

Battery, model 170

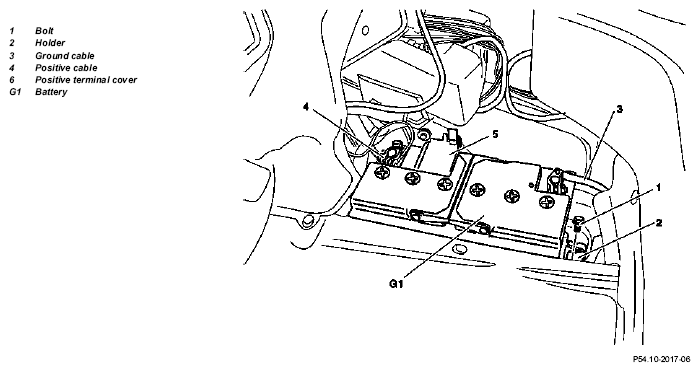

Fig 1: Identifying Battery Remove/Install Components - Model 170

Battery, models 202, 208

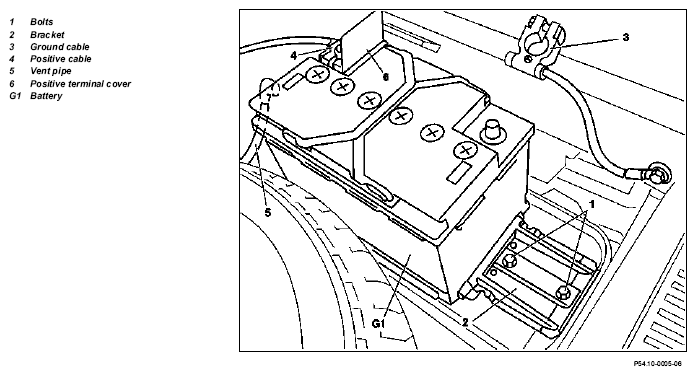

Fig 2: Identifying Battery Remove/Install Components - Model 202, 208

Battery, model 210

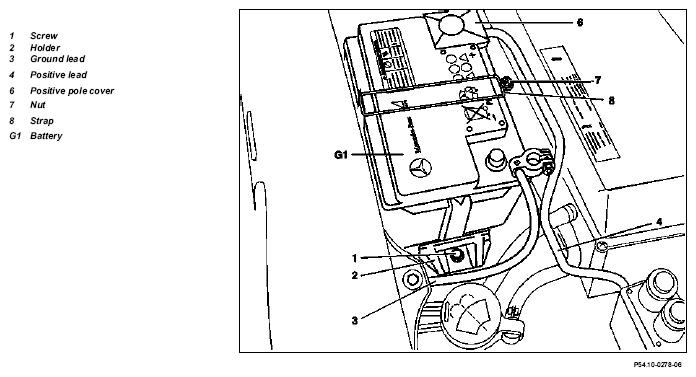

Fig 3: Identifying Battery Remove/Install Components - Model 210

Battery, model 129

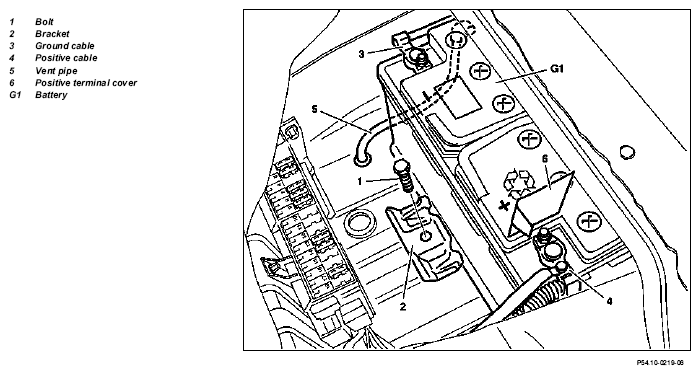

Fig 4: Identifying Battery Remove/Install Components - Model 129

	Removal, installation
	Explosion hazard  from explosive gas. Danger of poisoning and acid burns  when battery acid is swallowed. Danger of acid burns  to skin and eyes from battery acid or when handling damaged lead-acid batteries.	Fire, sparks, naked flame and smoking prohibited. Wear safety gloves, safety clothing and safety glasses which protect against acid. Only pour battery acid into suitable, appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery	All models	AH54.10-P-0001-01A
	Battery version changed (battery with felt)	In models 202.028/121/128 a battery with felt has been used as of 01/97 for a limited time.	BT54.10-P-0001-01A
1	Withdraw ignition/glow start key
2.1	Remove rear seat	Model 210 sedan	AR91.12-P-1700F
2.2	Fold rear seat cushion forward and remove battery compartment cover	Model 210 T-model
2.3	Fold trunk cover up	Model 202 sedan, 208
2.4	Remove cargo space cover	Model 202 T-model
2.5	Remove battery cover in right side of trunk	Model 129
3	Connect quiescent current circuit retention unit		*WH58.30-Z-1004-09A
4	Unscrew screw (1) and remove holder (2)	Model 202 with 62 Ah and 74 Ah, two screws
5.1	Unscrew nut (7) and remove strap (8)	Model 170
6	Disconnect ground cable (3) at battery	On model 210 insulate cable terminal on ground lead for protection against unintentional contact between disconnected ground lead and ground connection point W10	AR54.10-P-0003A
7	Disconnect positive cable (4)
8.1	Detach vent pipe (5) at battery (G1)	Models 202, 208, 210
9	Remove battery (G1)	If battery is defective ↓
	Dispose of battery	All models	OS54.10-P-0001-01Z
10	Reinstall in opposite order
