Disconnect/connect battery ground line - AR54.10-P-0003G

MODEL 461.217 /219 /223 /227 /229 /238 /239 /249 /266 /267 /321 /322 /323 /326 /327 /328 /329 /335 /336 /337 /338 /341 /365 /366 /367 /368 /401 /402 /403 /404 /405 /450 /451 /452 /454 /455 /456 /458 /459

MODEL 463.200 /204 /206 /207 /208 /209 /220 /221 /224 /225 /227 /228 /230 /231 /232 /233 /240 /243 /244 /245 /246 /247 /249 /250 /254 /270 /271 /300 /303 /304 /307 /308 /309 /320 /321 /322 /323 /324 /325 /327 /328 /330 /331 /332 /333 /340 /341

MODEL 463.241 /248 except CODE (979) Special protection version

Shown on model 460, 461 except 461.302/332/342/345, model 463 up to December 2000

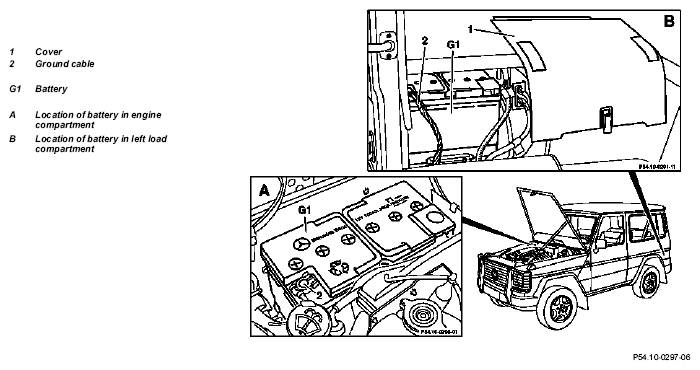

Fig 1: Locating Battery - Shown On Model 460, 461 Except 461.302/332/342/345, Model 463 Up To December 2000
G04715678

Shown on model 463.243/244/245/246/247/248/249/250/ 254/270/271/303/309/322/323/332/333/340/341

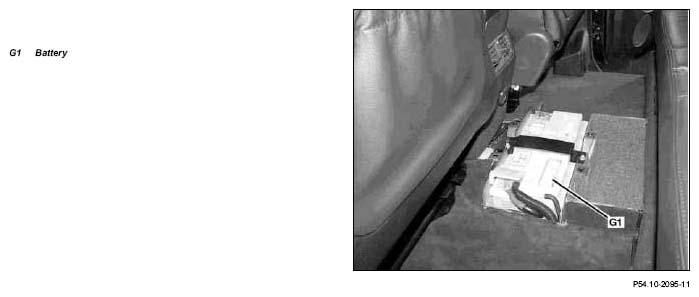

Fig 2: Locating Battery - Shown On Model 463.243/244/245/246/247/248/249/250/ 254/270/271/303/309/322/323/332/333/340/341
G04715679
MODIFICATION NOTES

19.3.04 Step "mount/detach quiescent current retention unit" removed. Step "Release radio, set time, set time for stationary heater" added.
REMOVINGINSTALLING Disconnect, connect
DANGER Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. AS54.10-Z-0001-01A
1 Activate Service mode in Tele-Aid emergency call system IMPORTANT Only on model 463.243/244/245/246/ 247/248/249/250/254/270/271/303/309/ 322/323/332/333/340/341 with code ET2 TeleAid car phone emergency call system AR82.95-P-0005-03GR
IMPORTANT Notes regarding the Tele-Aid emergency call system Model 463.243/244/245/246/247/248/249/ 250/254/270/271/303/309/322/323/ 332/333/340/341 with code ET2 TeleAid car phone emergency call system H82.95-P-0001-01GA
2 Remove cupholder. IMPORTANT Only on model 463.243/244/245/246/ 247/248/249/250/254/303/309/322/323/ 332/333/340/341 with code FG2 Cup holder, front and rear
3.1 Open engine hood IMPORTANT On model 461, model 463 up to June 96
3.2 Remove cover (1) on wheelhouse IMPORTANT On model 463 as of July 96 up to 30.11.2000
3.3 Remove cover of battery (G1) in rear legroom IMPORTANT On model 463.243/244/245/246/247/ 248/249/250/254/270/271/303/309/322/ 323/332/333/340/341
4 Disconnect ground line (2) from battery (G1) IMPORTANT Location of battery (G1):
  • Model 461, 463 up to 31st August 96: Location of battery in engine compartment (A).
  • Model 463 as of 1st September 96 except model 463.243/244/245/ 246/247/248/249/250/254/270/271/ 303/309/322/323/332/333/340/341: Location of battery left of load compartment (B).
  • Model 463.243/244/245/246/247/248/ 249/250/254/270/271/303/309/322/ 323/332/333/340/341: Location of battery (G1) in rear legroom

NOTES Notes on battery   AH54.10-P-0001-01A
5 Connect in the reverse order.
6 Deactivate service mode in TELE AID emergency call system IMPORTANT Only on model 463.243/244/245/246/ 247/248/249/250/254/270/271/303/309/ 322/323/332/333/340/341 with code ET2 TeleAid car phone emergency call system AR82.95-P-0005-03GR
7 Perform basic programming IMPORTANT Only on model 463.243/244/245/ 246/247/248/249/250/254/270/271/303/ 309/322/323/332/333/340/341 AR00.19-P-0200P
8 Release radio IMPORTANT See Operator's Manual
9 Set time on instrument cluster IMPORTANT See Operator's Manual
10 Set time on timer of stationary heater
