Checking exterior lamp failure indicator - AR54.30-P-6070A

MODEL 202

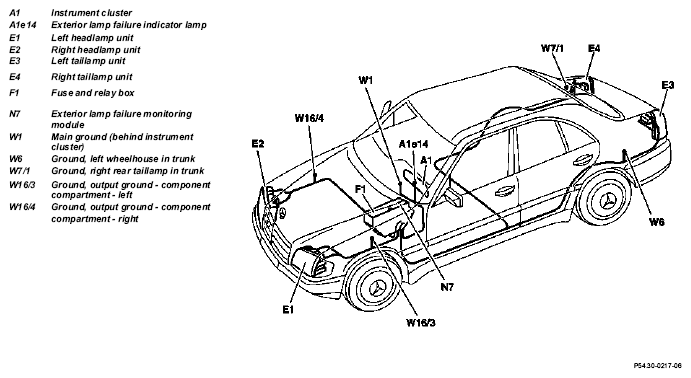

The figure shows the routing of the wires in the model 202 sedan. The schematic for the wire routing and location of the components is also applicable for the T-model.

Fig 1: Identifying Exterior Lamp Failure Indicator Components Location - Model 202

	Checking
1	Switch on lights	Visual check
2	Determine defective circuit	Only low beams, parking lamps, tail lamps and stop lamps are monitored
3	Check bulbs and fuses	The bulbs are monitored individually by the exterior lamp failure monitoring module. Bulbs with lower power ratings (Wattage) can lead to a malfunction being indicated, bulbs with higher power ratings do not lead to a malfunction indication: ↓ Bulbs and fuses okay Wiring diagrams, volumes 1 and 2, model 202	*BE82.10-P-1004-01A

Number	Designation			Model 202 except
BE82.10-P-1004-01A	Bulb power ratings	Low beams	W	55
		Low beams (Xenon)	W	-
		High beams	W	55
		Parking lamps	W	5
		Tail lamps	W	5
		Stop lamps	W	21
		Center high-mounted stop lamp	W	-
		Tail lamp (additional)	W	21/4
		Reverse lamp	W	21
		License plate illumination	W	5
		Fog lamps	W	55
		Rear fog lamp	W	21/4
