Removing and installing rear seat - RA91001290200X(91-200)
Operation no. of operation texts and work units or standard texts and flat rates

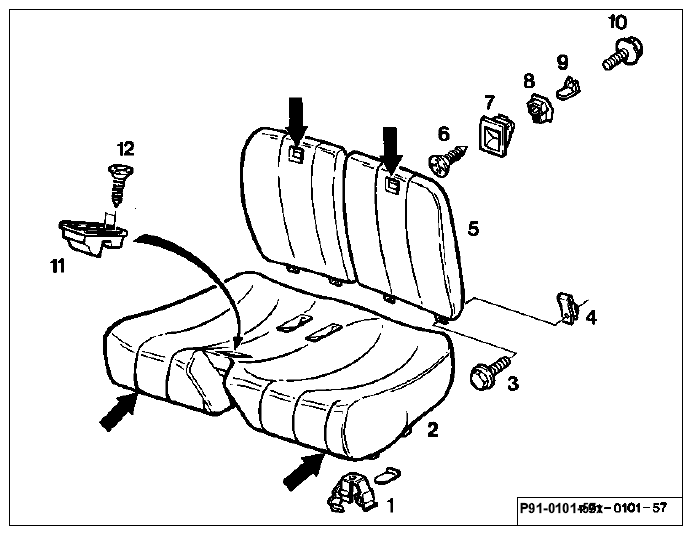

| Front seats | slide all the way forward. |
| Lock (1) on rear seat cushion (2) | press and lift rear seat cushion at front (arrows). |
| Rear seat cushion (2) | remove. |
| Screws (3) | Unscrew (4 each per backrest). |
| Rear backrests (5) | unhook at top (arrow) and remove individually. |
| Before installing rear backrests | check installation position of clip nut (4). |
| When installing rear seat cushion | insert both seat belt buckles into recess in rear seat cushion. |
| Both locks (1) | lock and position seat belts in side pockets. |
