Cutting out switch openings in cover - AR68.20-P-2030C: Notes

MODEL 129

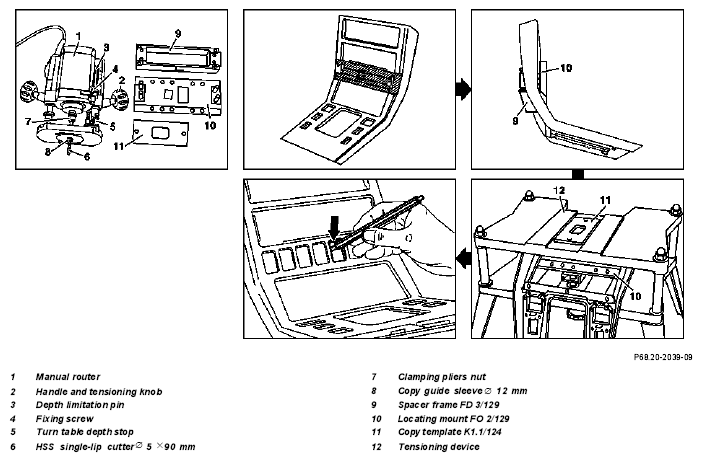

Fig 1: Identifying Cutting Out Switch Openings In Cover Components

	Removal
1	Remove wooden cover from upper switch level on center console
2	Remove stowage compartment from wooden cover
	Processing
	Cut wooden cover of upper switch level from rear
3	Mask painted cover surface in area of desired switch opening with paper adhesive strip.
4	Insert locating mount (FO 2/129) and spacer frame (FD 3/129) into cover		*WH58.30-Z-1011-20A
5	Insert cover together with locating mount (FO 2/129) and spacer frame (FD 3/129) into locating and clamping device and clamp tight	Do not tighten handwheel too tight so that cover cannot distort.
6	Insert copy template K1.1/124 (11) into mounting pins		*WH58.30-Z-1011-20A
7	Cut switch opening with manual router	Switch opening should be cut in three cutting steps.	AR68.20-P-2030-01C
			*WH58.30-Z-1011-20A
8	Unclamp wooden cover and remove paper adhesive tape
9	Blacken visible cutting areas on cover with black felt pen
	Installation
13	Install cover

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1011-20A	Universal profile milling machine with surface milling cutter (3 single lip miller Ø 5 X 60mm, 2 single lip miller Ø 5 X 90mm, templates, fixing supports for model 129, 170, 202, 208, 210, 463), Firma Fetzer GmbH 75446 Wiernsheim-Pinache
