ETC control module, task - GF27.19-P-4012-02GB
Transmission 722.6 in models 170, 202, 208, 210 with touch shift
Input and output signals
CAN databus
Task

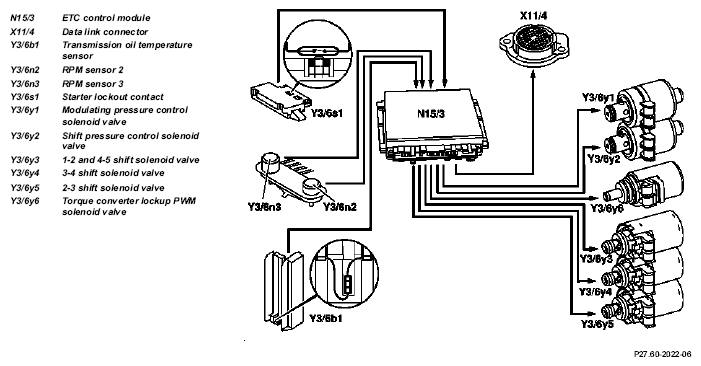

The ETC control module (N15/3) determines the instantaneous operating condition of the vehicle and controls all gearshift sequences taking into account the ease of shifting and the driving situation.
It receives operating data in the form of input signals from:
- Starter lock-out contact (Y3/6s1)
- Transmission oil temperature sensor (Y3/6b1)
- Rpm sensor 2 (Y3/6n2)
- Rpm sensor 3 (Y3/6n3)

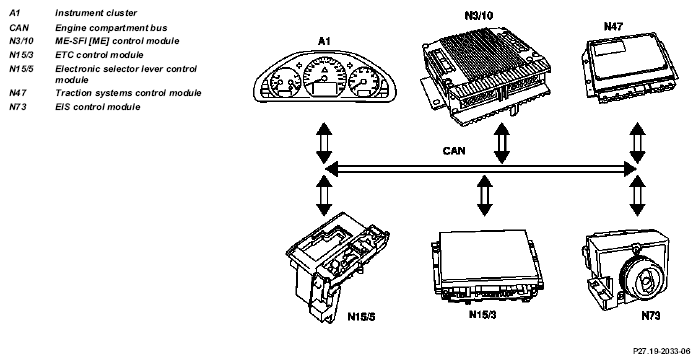

In addition there is a connection via the engine compartment bus to the:
- Instrument cluster (A1)
- ME-SFI control module (N3/10) or CDI control module (N3/9)
- Electronic selector lever module control module (N15/5)
- Traction system control module (N47)
- for EIS control module (N73)
The solenoid valves for the modulating and shift pressure and for the gearchanges are actuated by the ETC control module (N15/3).
The pressure required is calculated from all input signals, adjusted to the torque to be transferred.
The following information from other systems is then processed:
ME-SFI control module (N3/10) or CDI control module (N3/9)
- Engine torque
- Engine speed
- Accelerator pedal position
- Gear shift
- Engine status
Electronic selector lever module control module (N15/5)
- Kickdown switch (S16/6)
- Selector lever position
- Transmission mode
- Transmission mode switch (S16/5)
Traction system control module (N47)
- Wheel speeds
- Gear shift
- Traction status
EIS [EZS] control module (N73)
The EIS (N73) forms the gateway (link) between the engine compartment bus (CAN-C) and the passenger compartment bus (CAN-B). The ETC transmission control module EGS (N15/3) receives the following input signal via the EIS [EZS] control module (N73) from the AAC pushbutton control module (N22):
- A/C compressor torque
The following information is output to other systems:
Instrument cluster (A1)
- Selector lever position / shift range
Traction system control module (N47)
- Transmission ratio
- Speeds
ME-SFI control module (N3/10) or CDI control module (N3/9)
- Kickdown switch (S16/6)
- Engaged drive mode
- Selector lever position P/N
