ETC control module, location - GF27.19-P-4012-01G

TRANSMISSION 722.6 in MODEL 140, 210, 215, 220

Location

The ETC control module (N15/3) is installed in the control module housing in the right of the engine compartment.

Shows model 220

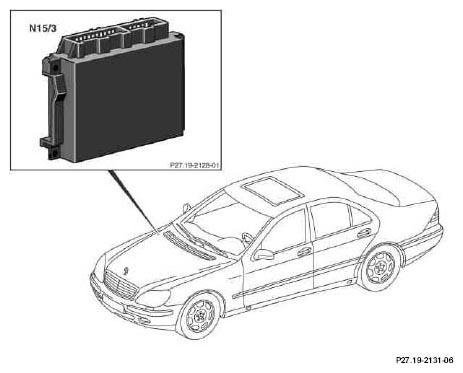

Fig 1: Identifying ETC Control Module Location
G04631871Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
