Checking caster, assigning to tabular value - AR40.20-P-0322-03E
Models 210.08/28

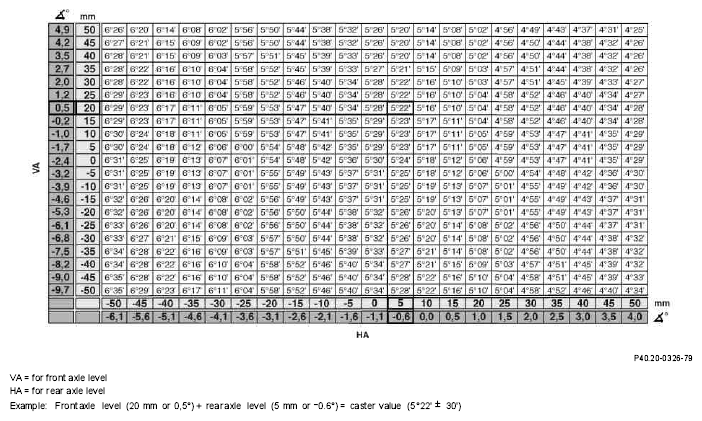

Measure front and rear axle level and obtain the front axle caster value (measured with wheels turned 20°) from the table, tolerance ± 30', max. difference between left and right 30'.
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
