Check and adjust toe on rear axle - AR40.20-P-0332FB

MODEL 210 with CODE (979) Special protection version with CODE (Z04) Light armoring with CODE (Z06) B6 armoring

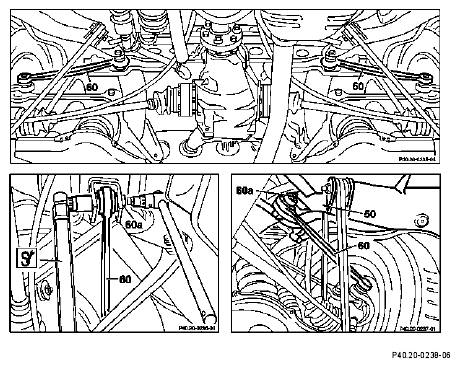

Fig 1: Identifying Adjust Toe On Rear Axle

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	Check
1.1	Check vehicle level at front and rear axle and adjust, if necessary	With Mercedes-Benz measuring device.	AR40.20-P-0300FB
1.2	Check vehicle level at front and rear axle with electronic inclination measuring instrument and adjust, if necessary	With electronic inclinometer	AR40.20-P-0301FB
2	Adjust toe with cam bolt (60a) on mounting of left and right tie rod (60) on rear-axle carrier (50)		*BE40.20-P-1001-10A
			*BA40.20-P-1008-01A
		On vehicles with xenon headlamps, check headlamp adjustment after changing the toe-in	AP82.10-P-8260A

Chassis alignment

Number	Designation		Model 210
BA40.20-P-1008-01A	Cam bolt, rear axle tie rod	Nm	70

Test values for rear axle toe

Number	Designation		Model 210
BE40.20-P-1001-10A	Overall toe-in at rear axle	∠ °	0° 33'(± 7')
