Remove/install height adjustment motor gear mechanism - AR46.10-P-0600-06I

Removing

1. .1 Model 215, 220: Unclip microswitch connector (a).
2. Remove bolts (60a) from gearing (60). Remove gearing (60) and detach gearing connection piece (60e).

   Shown on model 220

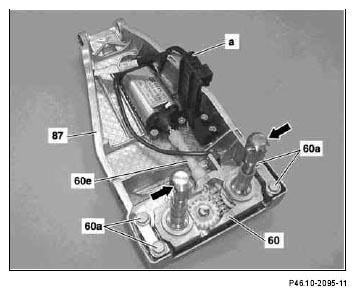

   Fig 1: Identifying Unclip Microswitch Connector And Gearing Connection Piece

   Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

   Install

3. Insert gearing (60) and slide on gearing connection piece (60e).
4. Install bolts (60a) for gear mechanism (60).

   Do not tighten bolts (60a) until the mounting console (87) is mounted on the steering column tube.

5. Check alignment of the two holes (arrows) in the pins. To do this, insert a suitable bolt through the holes and turn the pins to adjust the height if necessary.

   The chamfers of the bolt eyes (arrows) must point outwards.

6. .1 Model 215, 220: Clip in microswitch connector (a).
