Retrieving Diagnostic Trouble Codes: Notes
NOTE:
Since any DTCs from the other systems are stored in Brake Assist System (BAS) during the diagnostic process, it is important to read BAS system DTCs first. DTC readout is not possible using an impulse counter type scan tool.

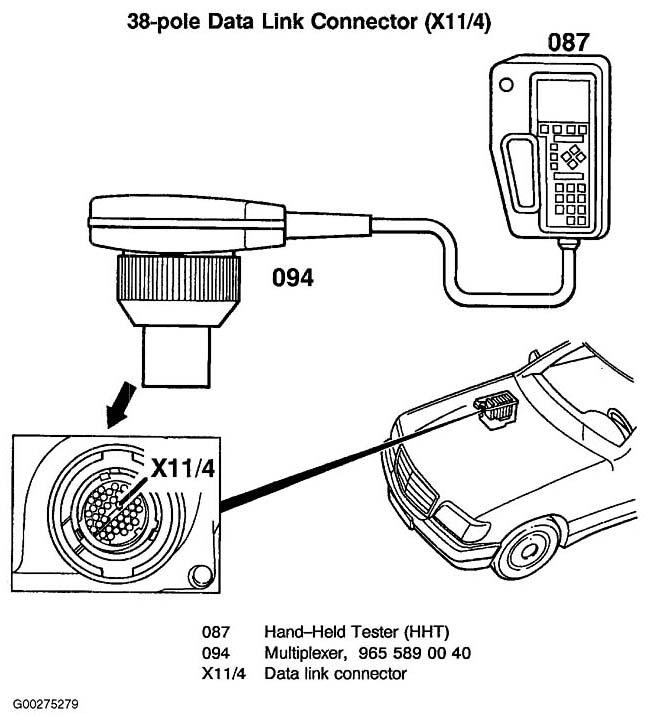

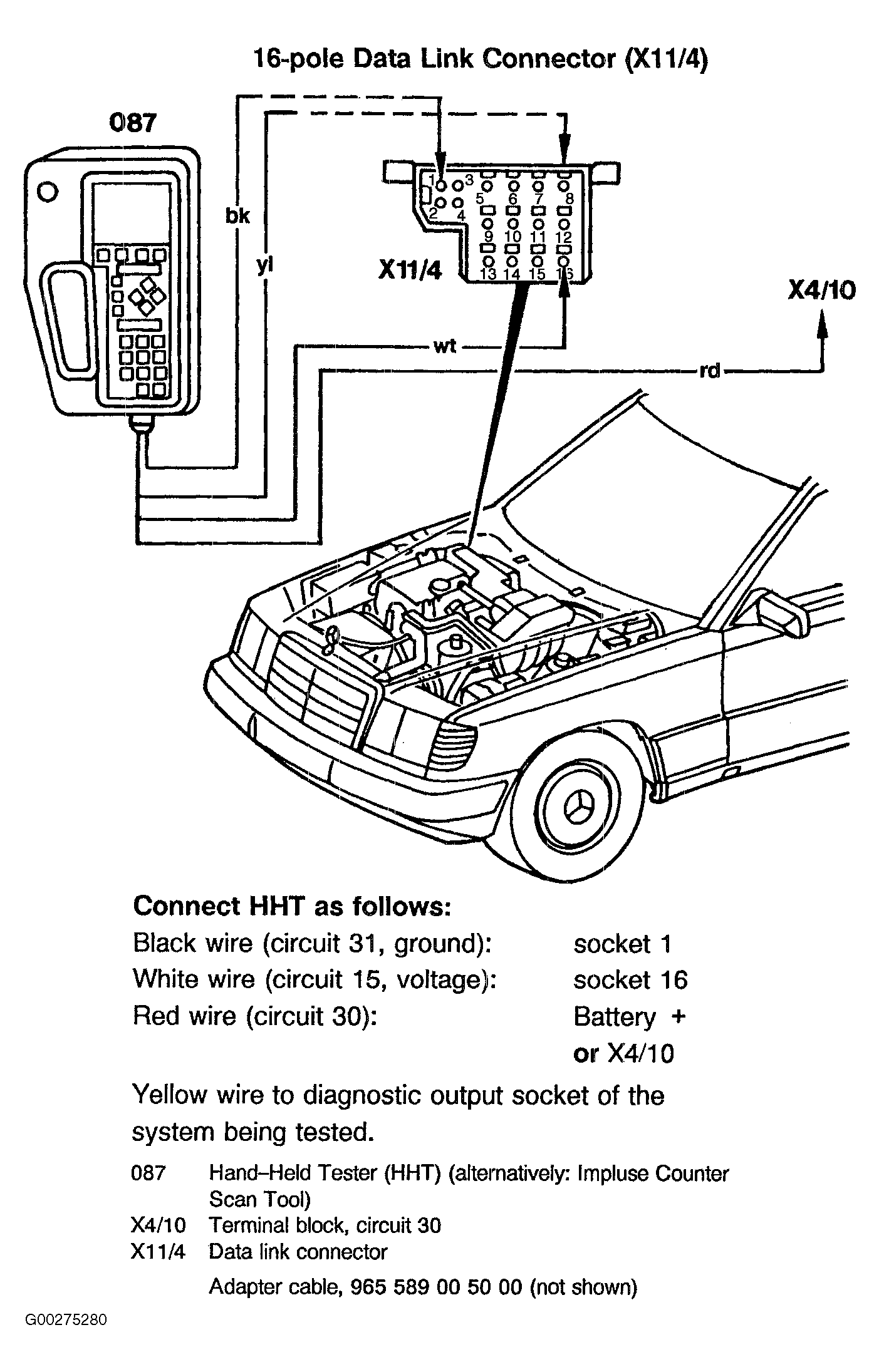

Connect HHT according to connection diagram. See Fig 1 - Fig 2.
