Connector Identification

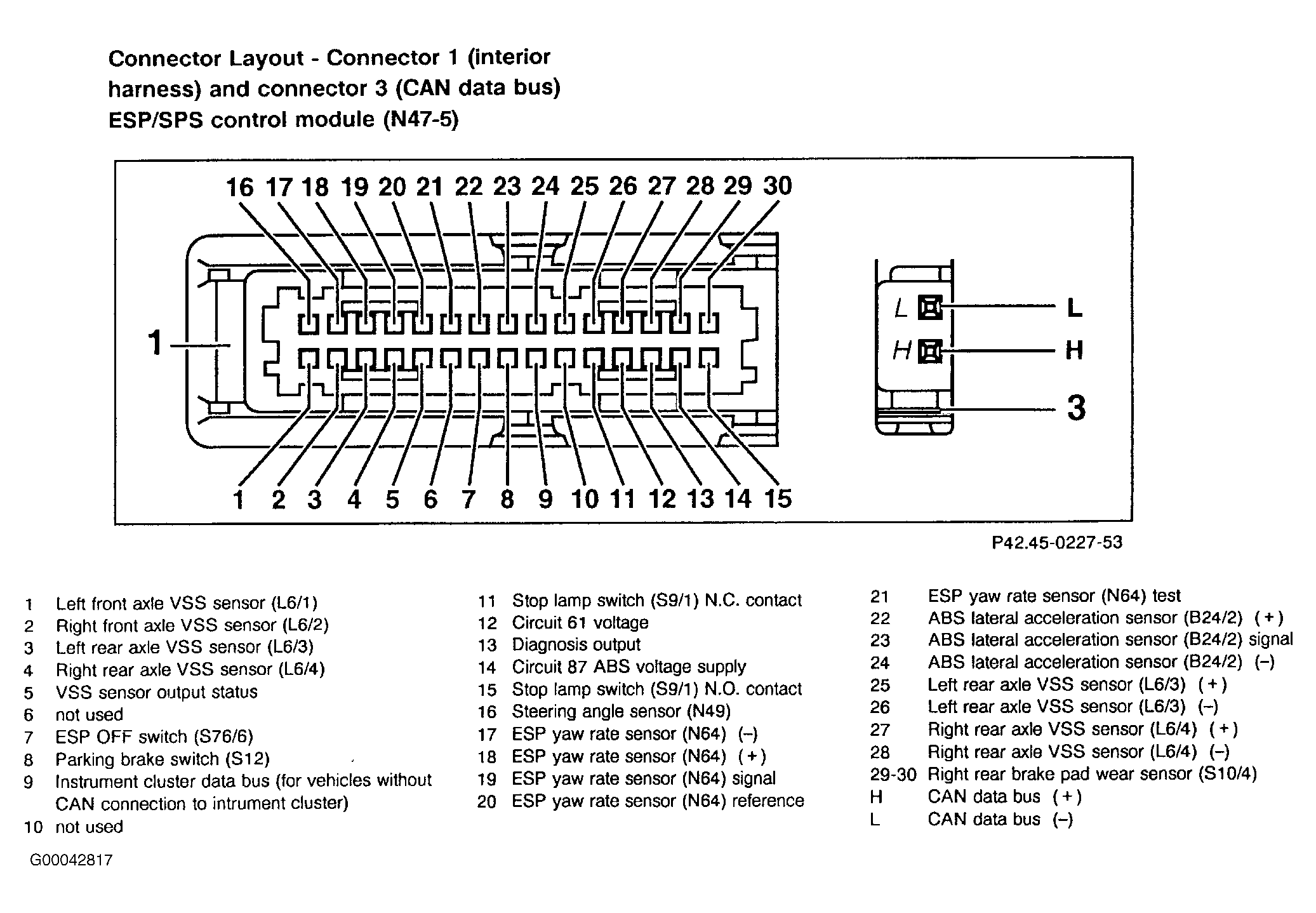

Fig 1: Identifying ESP/SPS (N47-5) Connector Terminal Pin Arrangement (1 Of 2)
G00042817Courtesy of DAIMLERCHRYSLER CORPORATION

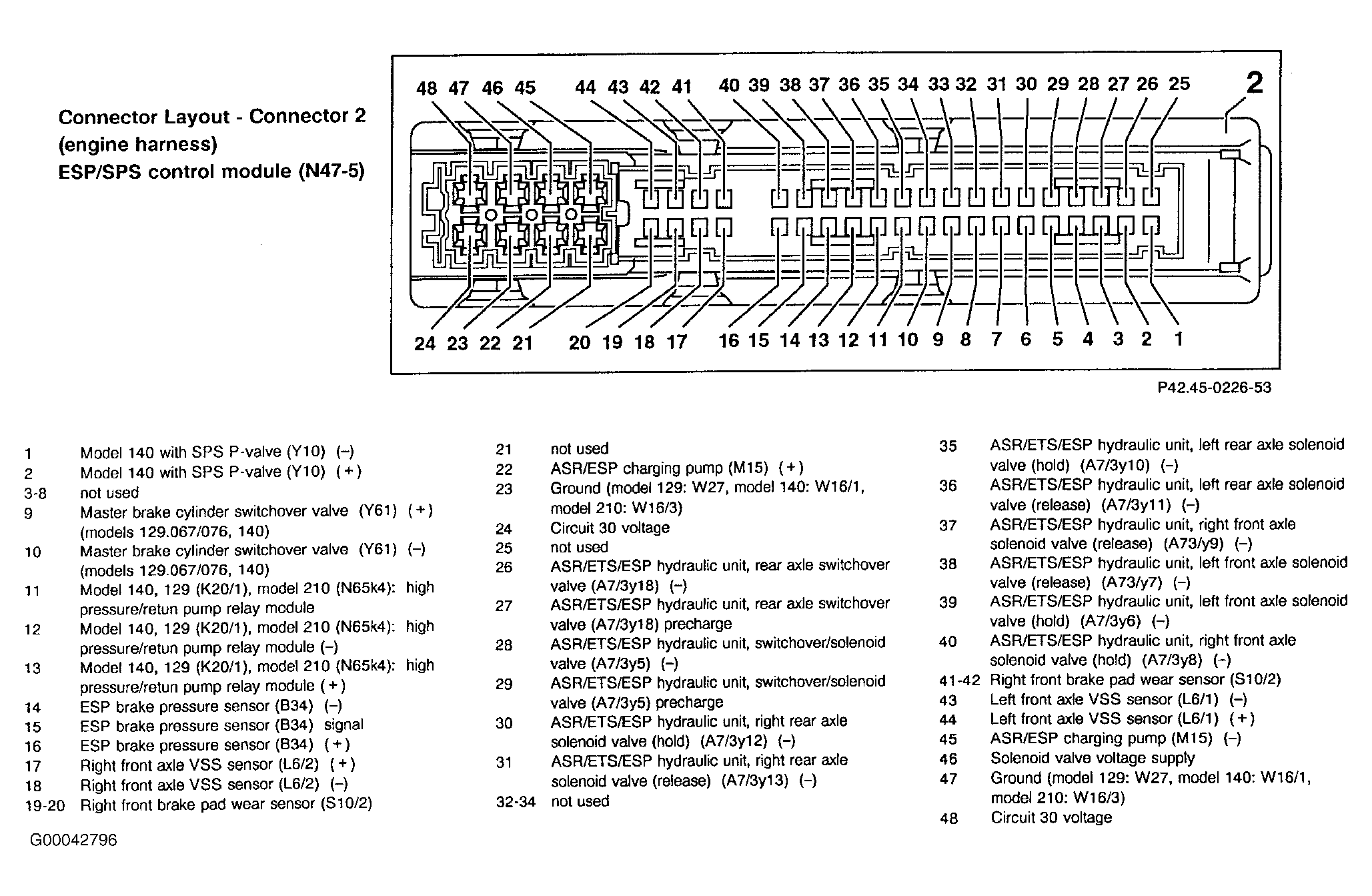

Fig 2: Identifying ESP/SPS (N47-5) Connector Terminal Pin Arrangement (2 Of 2)
G00042796Courtesy of DAIMLERCHRYSLER CORPORATION
