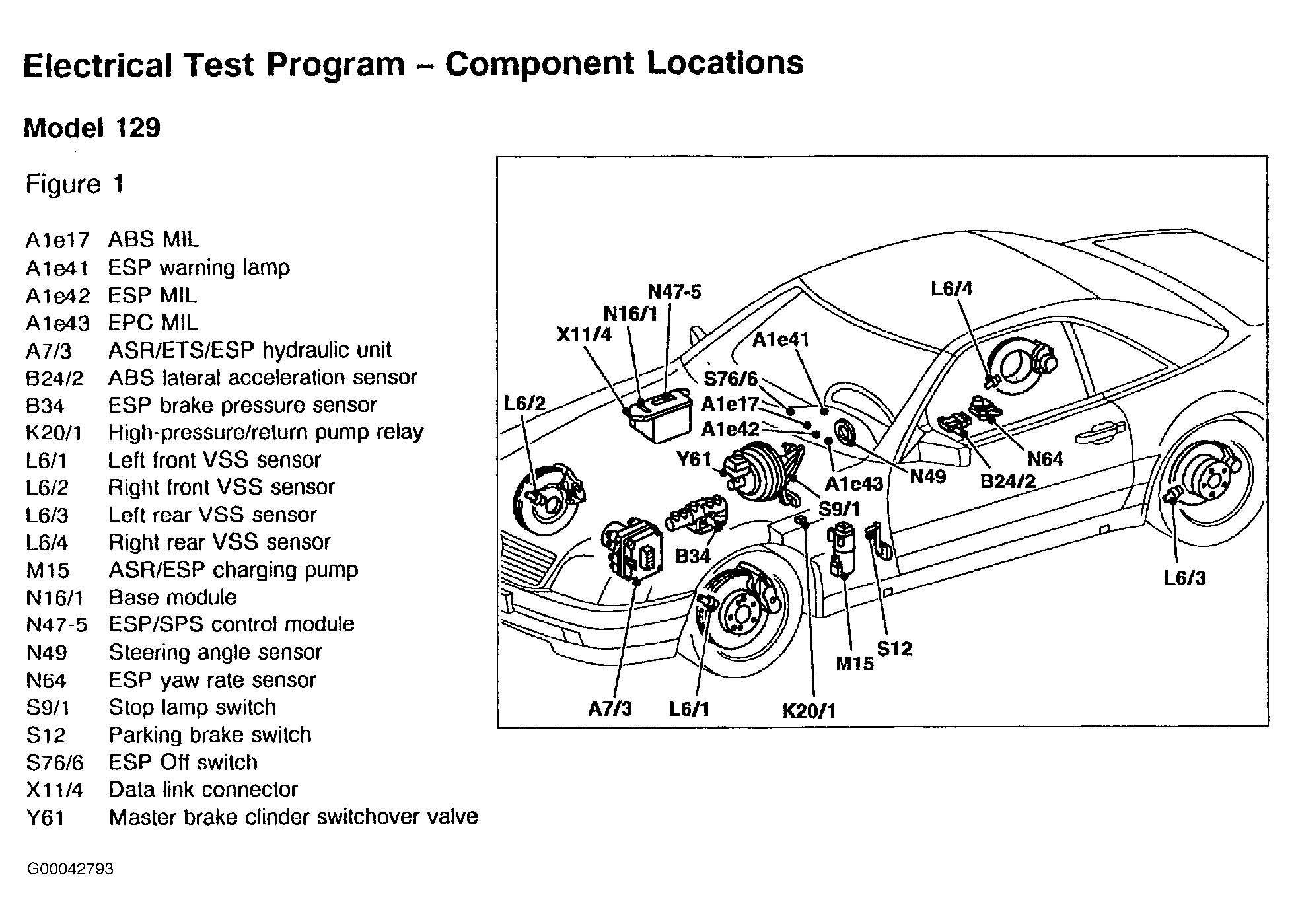

Component Locations (129 Chassis)
COMPONENT LOCATIONS (129 CHASSIS)
| Component | See |
|---|---|
| ABS Lateral Acceleration Sensor (B24/2) | Fig 1 |
| ABS MIL (A1e17) | Fig 1 |
| ASR/ESP Charging Pump (M15) | Fig 1 |
| ASR/ETS/ESP Hydraulic Unit (A7/3) | Fig 1 |
| Base Module (N16/1) | Fig 1 |
| Data Link Connector (X11/4) | Fig 1 |
| EPC MIL (A1e43) | Fig 1 |
| ESP Brake Pressure Sensor (B34) | Fig 1 |
| ESP MIL (A1e42) | Fig 1 |
| ESP Off Switch (S76/6) | Fig 1 |
| ESP/SPS Control Module (N47-5) | Fig 1 |
| ESP Warning Lamp (A1e41) | Fig 1 |
| ESP Yaw Rate Sensor (N64) | Fig 1 |
| High Pressure/Return Pump Relay (K20/1) | Fig 1 |
| Left Front VSS Sensor (L6/1) | Fig 1 |
| Left Rear VSS Sensor (L6/3) | Fig 1 |
| Master Brake Cylinder Switchover Valve (Y61) | Fig 1 |
| Parking Brake Switch (S12) | Fig 1 |
| Right Front VSS Sensor (L6/2) | Fig 1 |
| Right Rear VSS Sensor (L6/4) | Fig 1 |
| Steering Angle Sensor (N49) | Fig 1 |
| Stop Lamp Switch (S9/1) | Fig 1 |
