Starter relay - check electrics - ME-SFI fuel injection system - AD07.61-P-6000-03C

104.941 as of 1.8.96 with transmissions 722.4/6

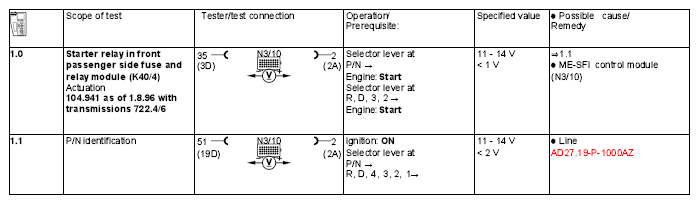

Fig 1: Starter Relay - Check Electrics - ME-SFI Fuel Injection System
G04624139Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
