Motor electronics (ME-SFI) fuel injection and ignition system control module input signals - GF07.61-P-0001-06E

Engine 119

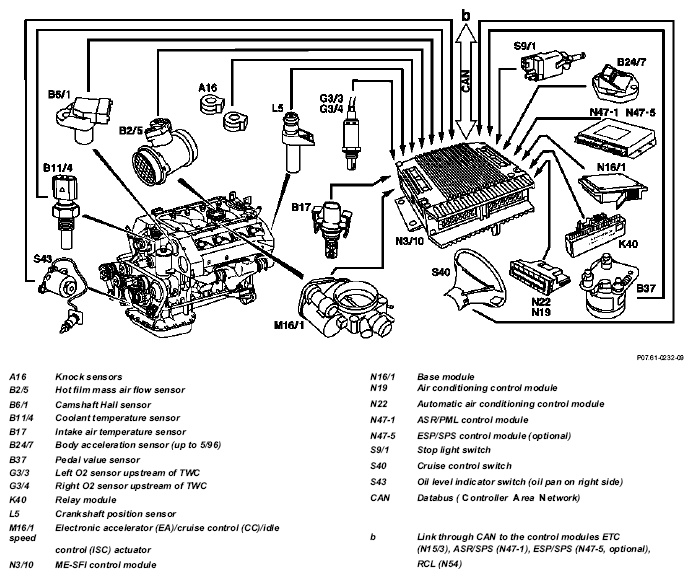

Fig 1: Identifying Motor Electronics Fuel Injection And Ignition System Control Module Input Signals Components
G04624056Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
