Hot film engine management (HFM-SFI) fuel injection and ignition system control module output signals - GF07.51-P-0001-06D

Engine 104

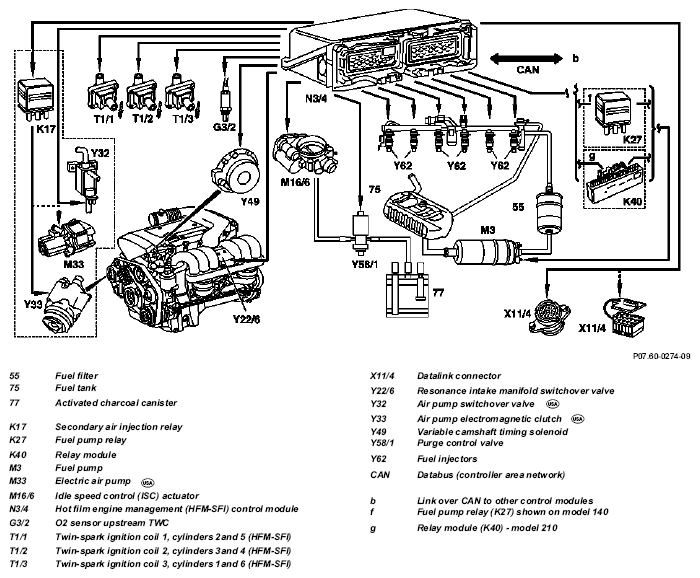

Fig 1: Identifying Hot Film Engine Management Fuel Injection And Ignition System Control Module Output Signals
G04624009Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
