Exhaust gas recirculation vacuum transducer, function - GF07.17-P-3157-03H

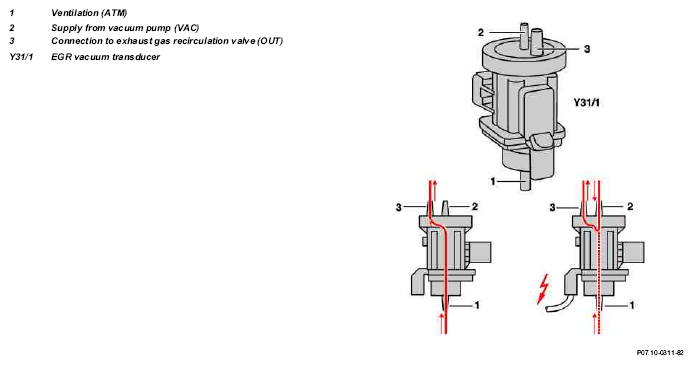

Fig 1: Identifying Exhaust Gas Recirculation Vacuum Transducer, Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The EGR [ARF] vacuum transducer (Y31/1) is actuated by the engine control unit with a variable current.

• Signal from control unit:

  Controlled vacuum to connection (3)

• No signal from control unit:

  Connection (1) and (3) connected - EGR valve closed (ventilated)
