Electronic fuel injection and ignition system (ME-SFI) control module output signals - GF07.61-P-0001-07E

Engine 119

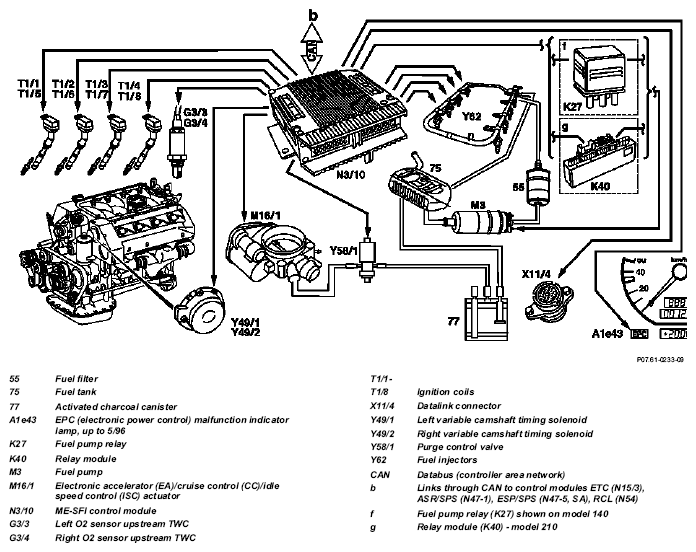

Fig 1: Identifying Electronic Fuel Injection And Ignition System Control Module Output Signals Components

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
