Diaphragm pressure sensor position - GF07.17-P-4106-02F

Engine 104

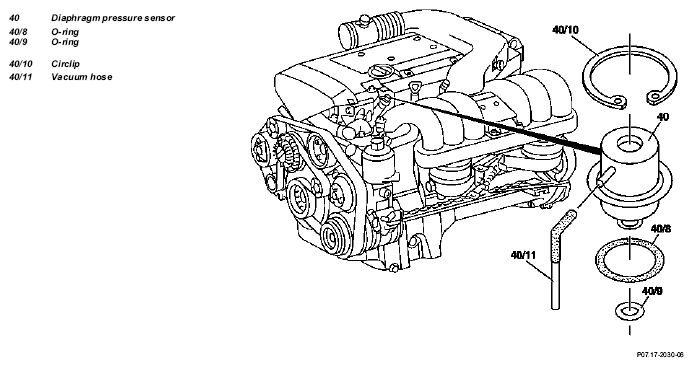

Fig 1: Identifying Diaphragm Pressure Sensor Position - Engine 104

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 111

Fig 2: Identifying Diaphragm Pressure Sensor Position - Engine 111

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 119

Fig 3: Identifying Diaphragm Pressure Sensor Position - Engine 119

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Engine 120

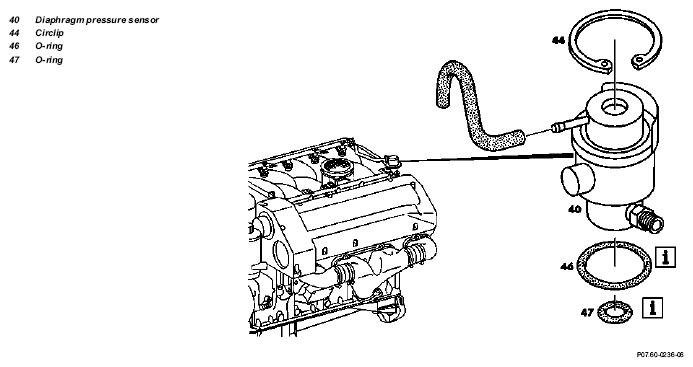

Fig 4: Identifying Diaphragm Pressure Sensor Position - Engine 120

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
