ME-SFI ignition system function diagram - GF15.12-P-0001-01D

Engine 104

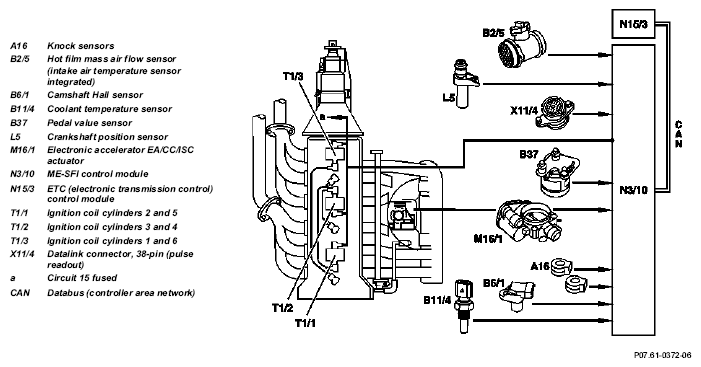

Basic diagram of ignition system with rotorless high voltage distribution, engine 104

Fig 1: Identifying ME-SFI Ignition System Function Diagram (Engine 104)
G04631729Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
