Removing and installing left exhaust manifold - AR14.10-P-3930EA

ENGINE 119.985

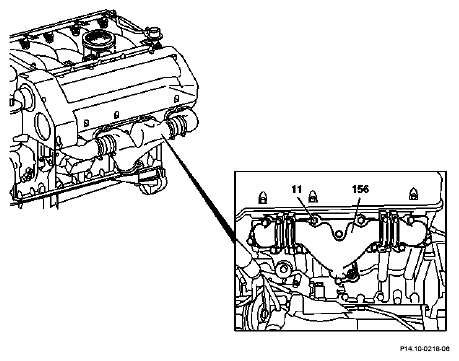

Fig 1: Identifying Left Exhaust Manifold

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

	removing and installing
1	Removing and installing bottom engine compartment paneling
2	Removing and installing complete exhaust system		AR49.10-P-7000EA
3	Remove fan shroud
4	Remove front left engine mount complete	refer to Repair Instructions, engines 119.960/970/971/972/974/975 Mechanical II Work no. 22-2110
5	Remove windshield washing container
6	Remove self-locking screws (11)	Replace	*BA14.10-P-1003-01B
7	Lift engine at oil sump with telescopic jack (pit lift or stacker)
8	Remove exhaust manifold (156) from above	If necessary after checking: ↓
		Replace riveted nuts in exhaust manifold	AR49.10-P-5531-01DA
9	Replace gaskets	Clean sealing surfaces. Fit new gasket on locating pins with metal side to cylinder head. If gasket is not held by locating pins, apply spots of sealing compound	*BR00.45-Z-1010-01A
10	Install in the reverse order

Exhaust manifold

Number	Designation		Engine 119
BA14.10-P-1003-01B	Exhaust manifold screw	Nm	/30

Repair materials

Number	Designation	Order number
BR00.45-Z-1010-01A	Sealant	A 001 989 25 20
