Engine Compartment Fuse & Relay Box F1 (Fuse Blocks A-D & F)

NOTE: Engine compartment fuse & relay box F1 is located in left rear corner of engine compartment. See Fig 1 -Fig 9

Fig 1: Locating Engine Compartment Fuse & Relay Box F1

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Locating Fuse Blocks A-D & F On Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 3: Locating Fuses On Fuse Block A Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

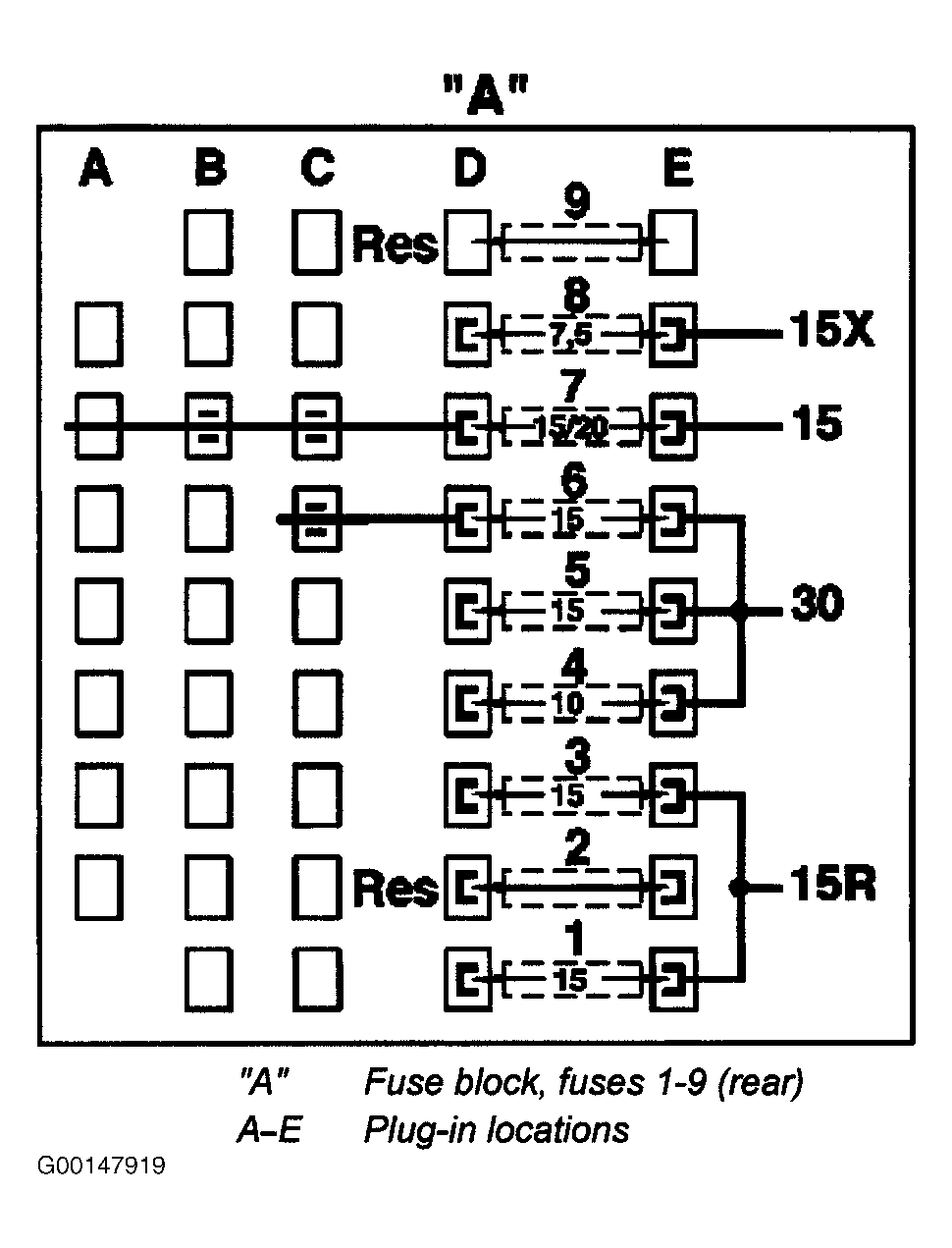

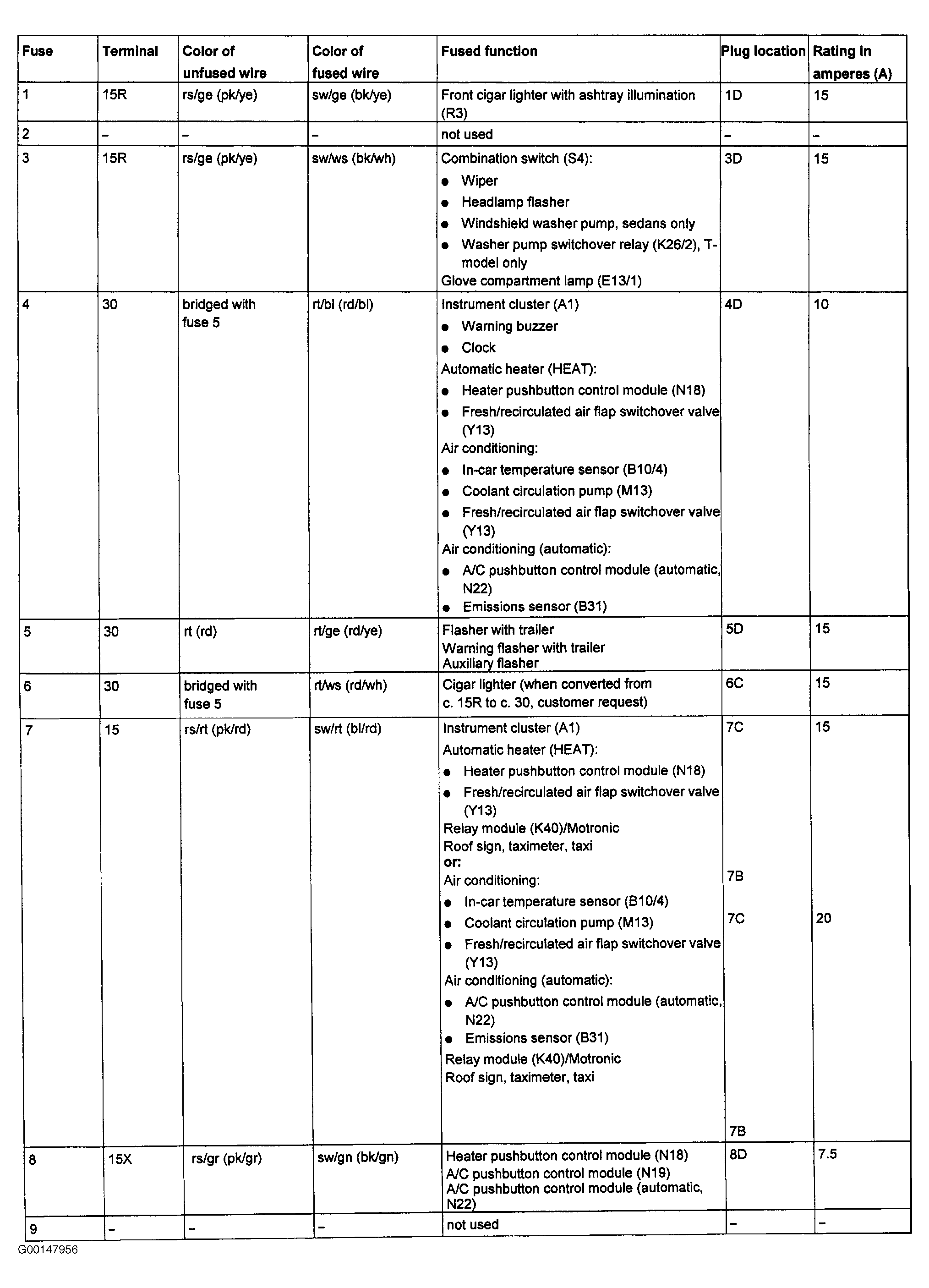

Fig 4: Identifying Fuses 1-9 On Fuse Block A Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 5: Locating Fuses On Fuse Block B Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

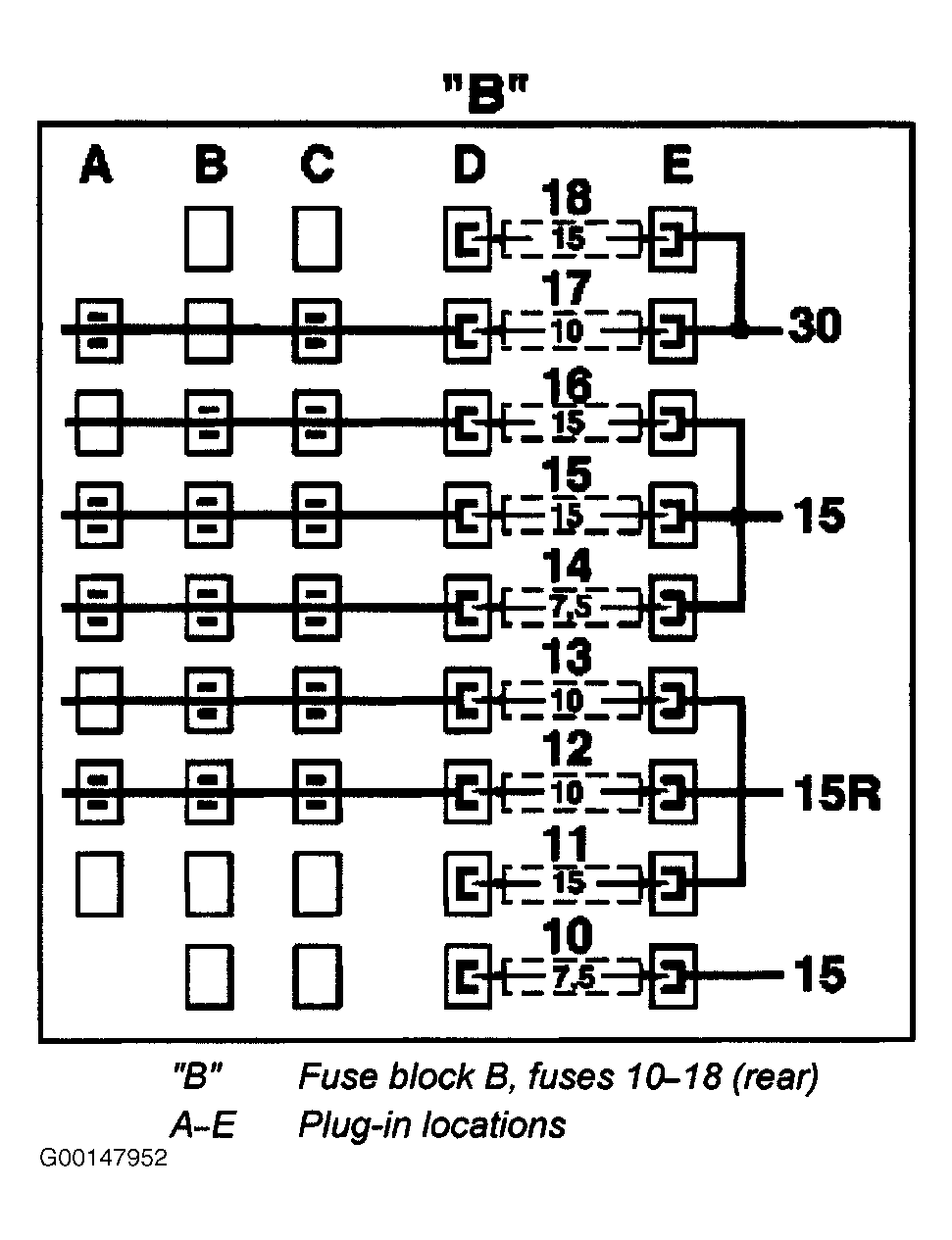

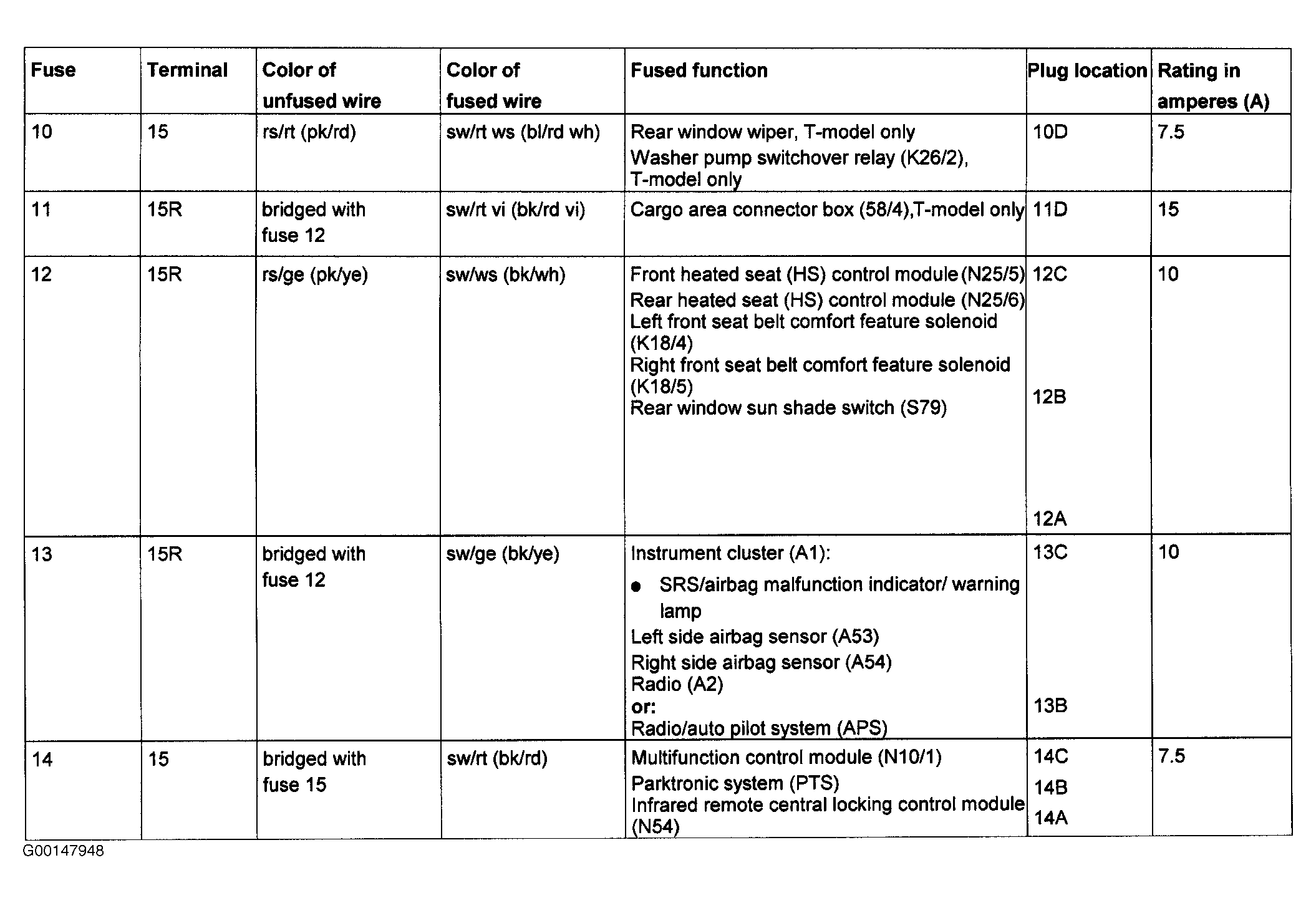

Fig 6: Identifying Fuses 10-14 On Fuse Block B Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

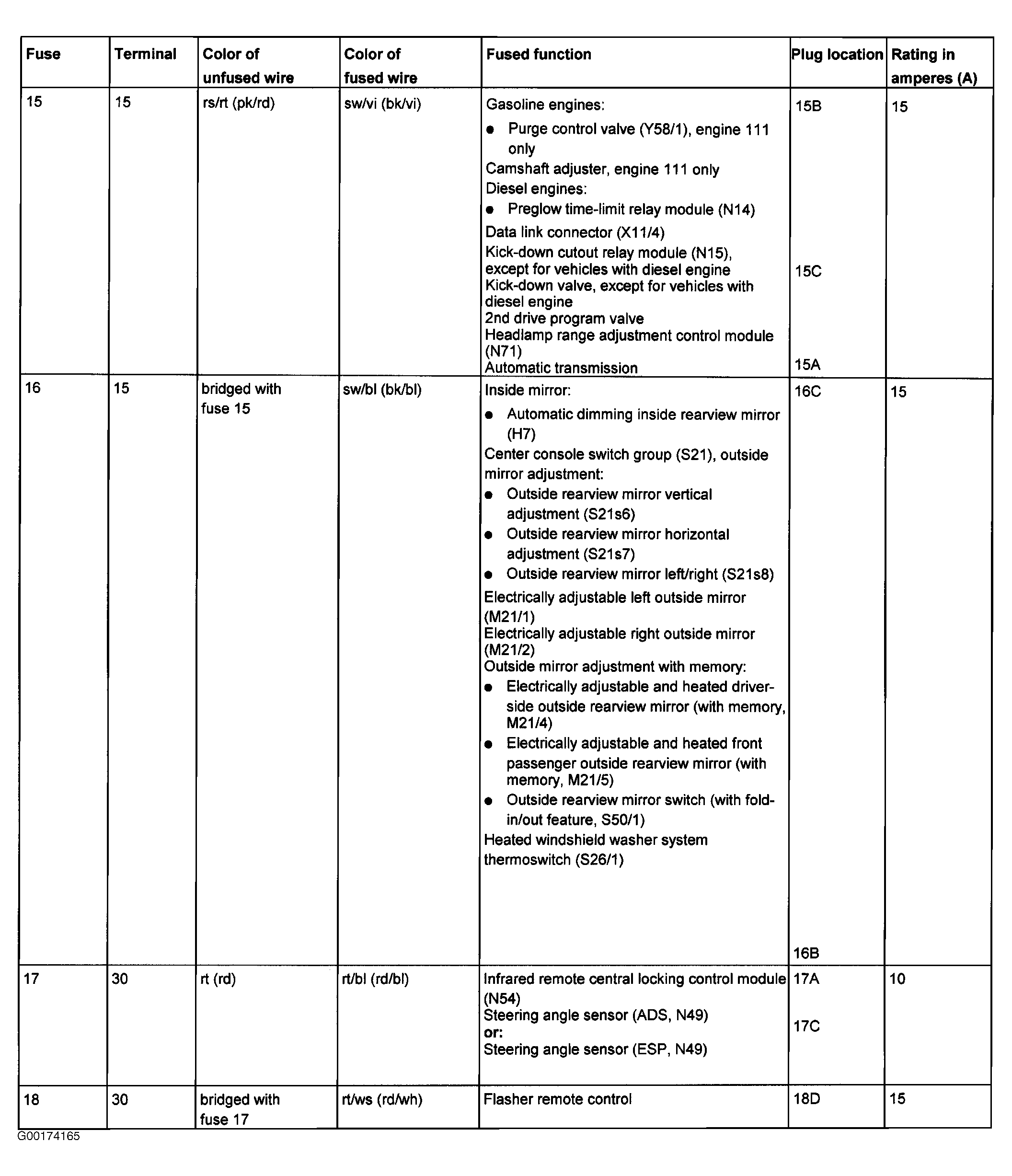

Fig 7: Identifying Fuses 15-18 On Fuse Block B Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 8: Locating Fuses On Fuse Blocks C, D & F Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

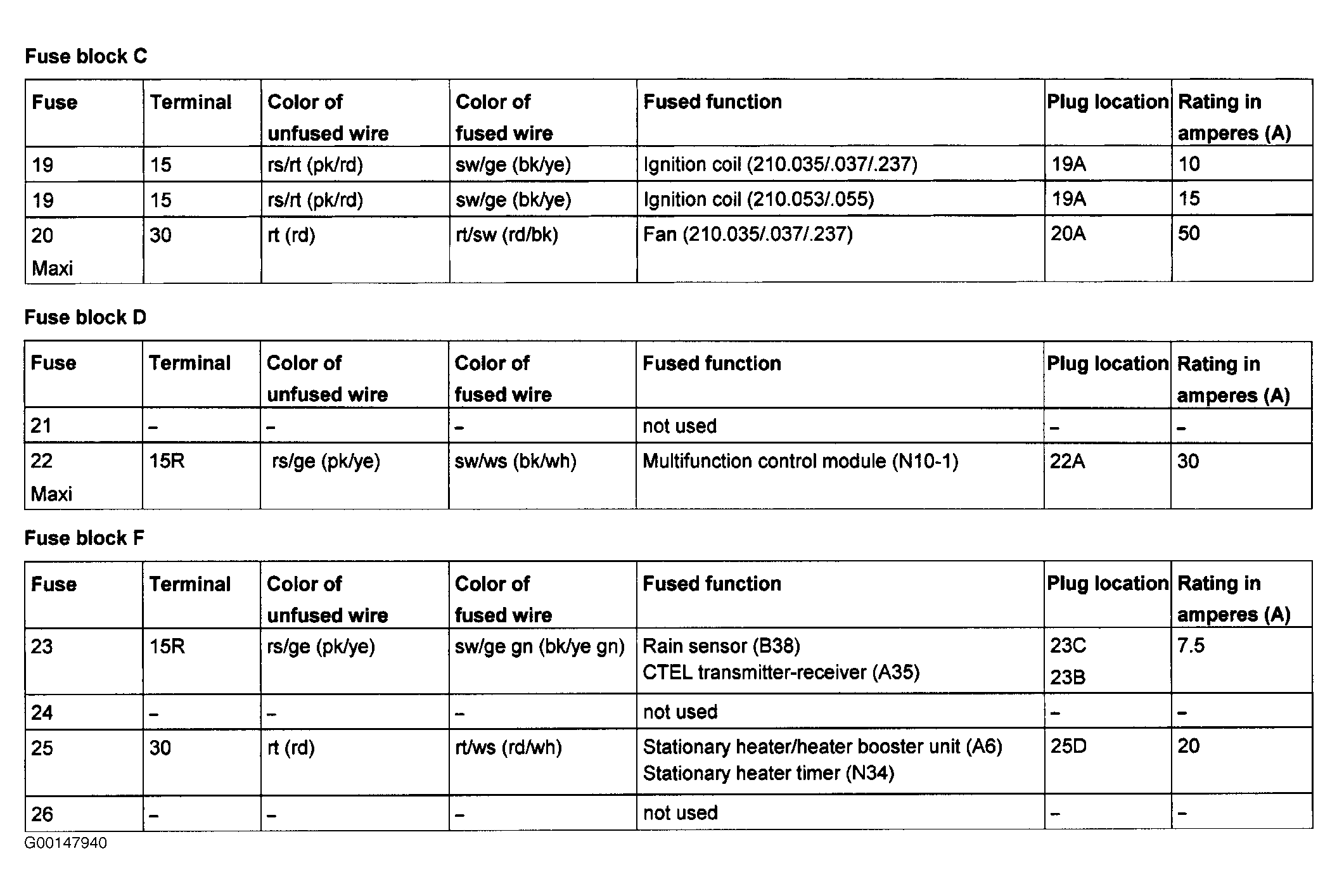

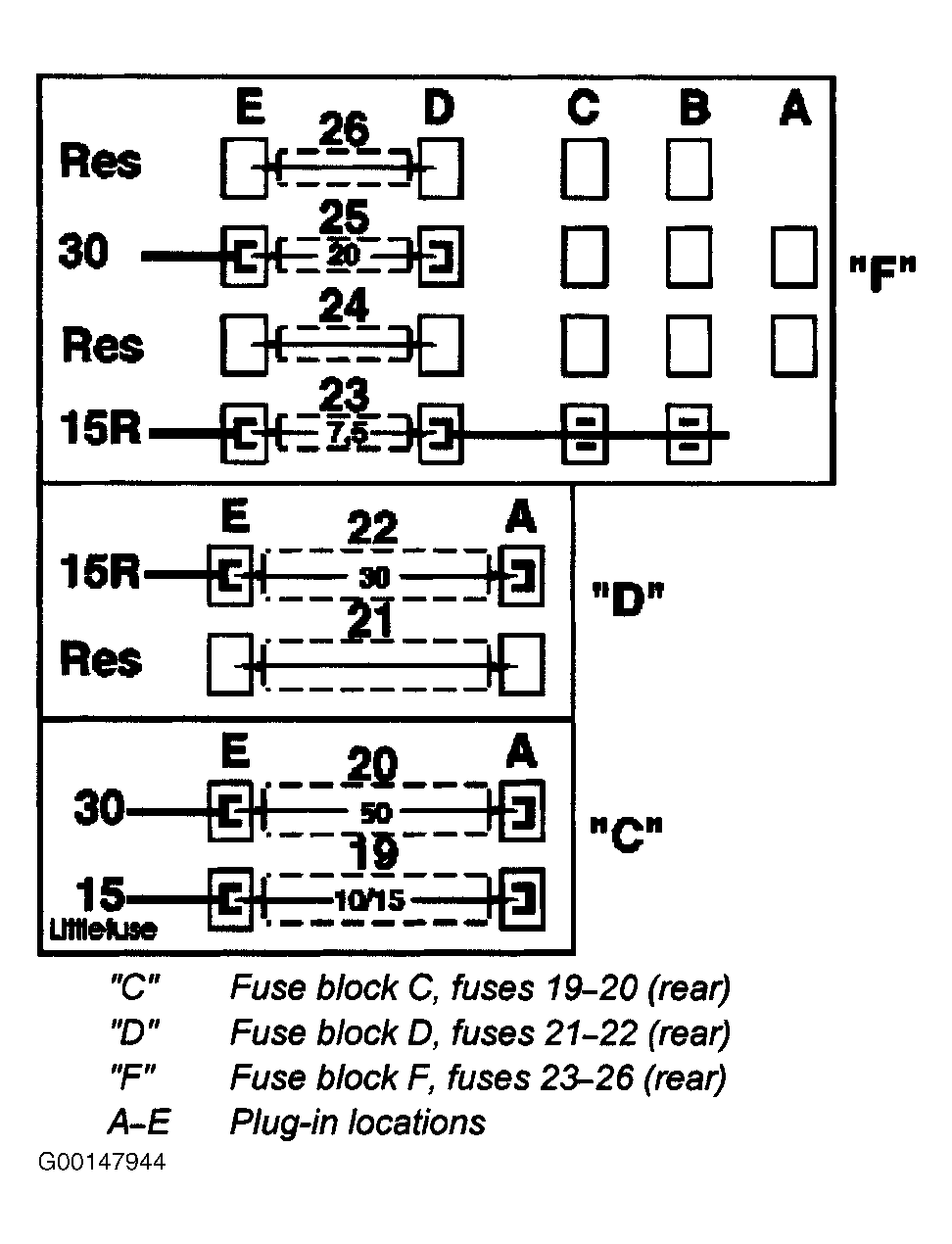

Fig 9: Identifying Fuses 19 & 20 On Fuse Block C, Fuses 21 & 22 On Fuse Block D & Fuses 23-26 On Fuse Block D Of Engine Compartment Fuse & Relay Box F1
