Rear Fuse Box F4 (Fuse Blocks A-C)

NOTE: Rear fuse box F4 is located under right side of rear seat bench. See Fig 1 -Fig 6

Fig 1: Locating Rear Fuse Box F4

G00033049

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Locating Fuse Blocks A-C On Rear Fuse Box F4

G00147950

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

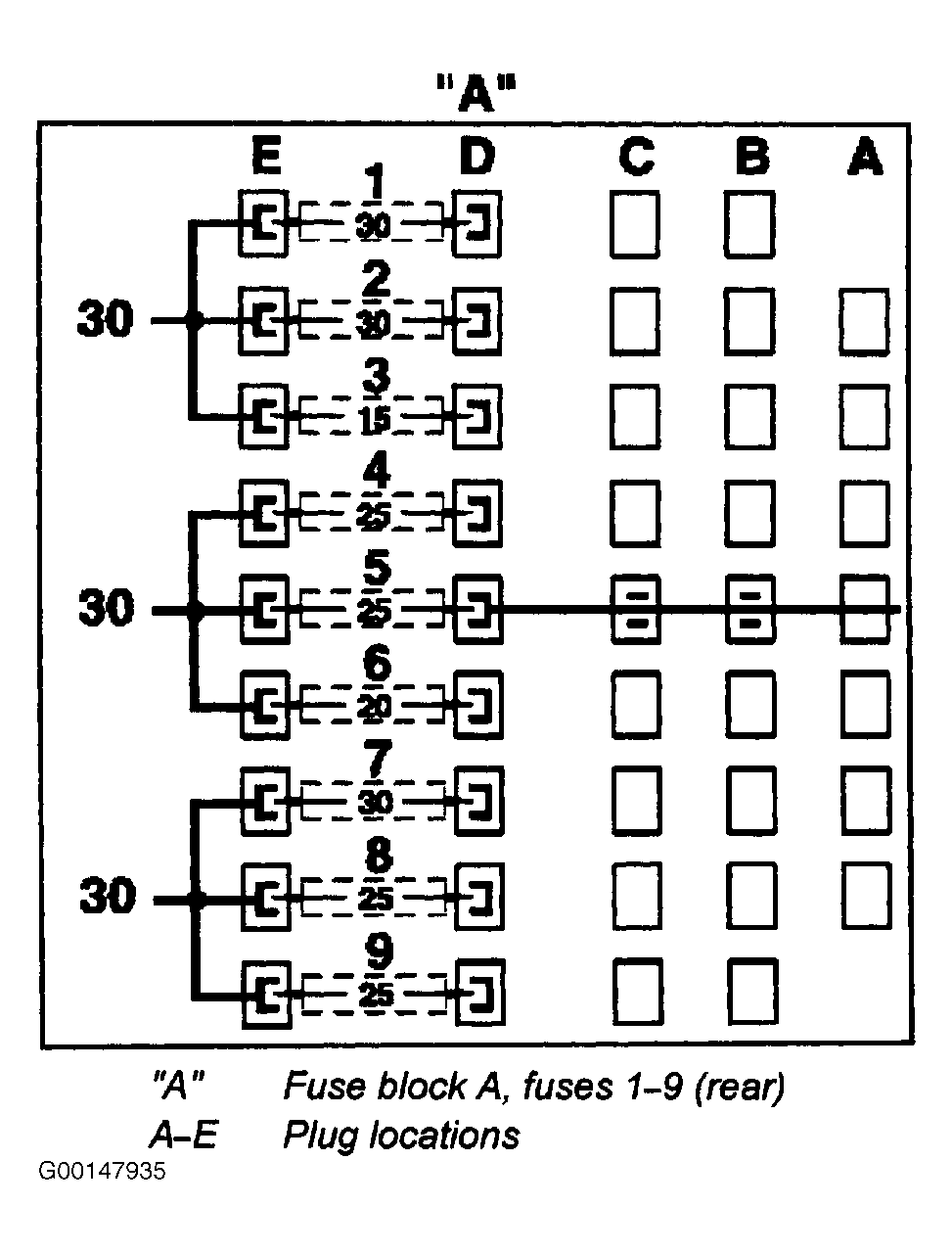

Fig 3: Locating Fuses On Fuse Block A Of Rear Fuse Box F4

G00147935

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

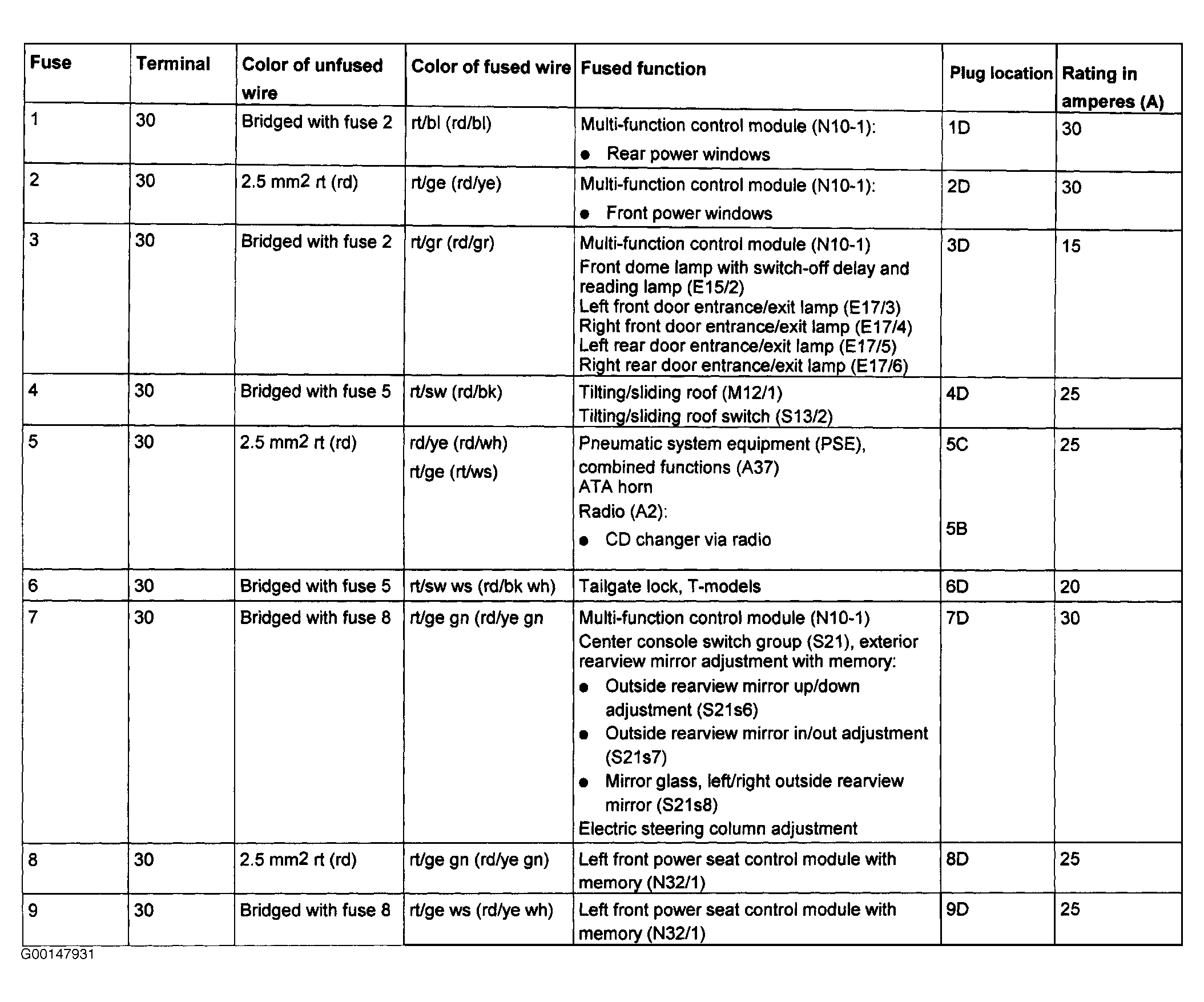

Fig 4: Identifying Fuses 1-9 On Fuse Block A Of Rear Fuse Box F4

G00147931

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

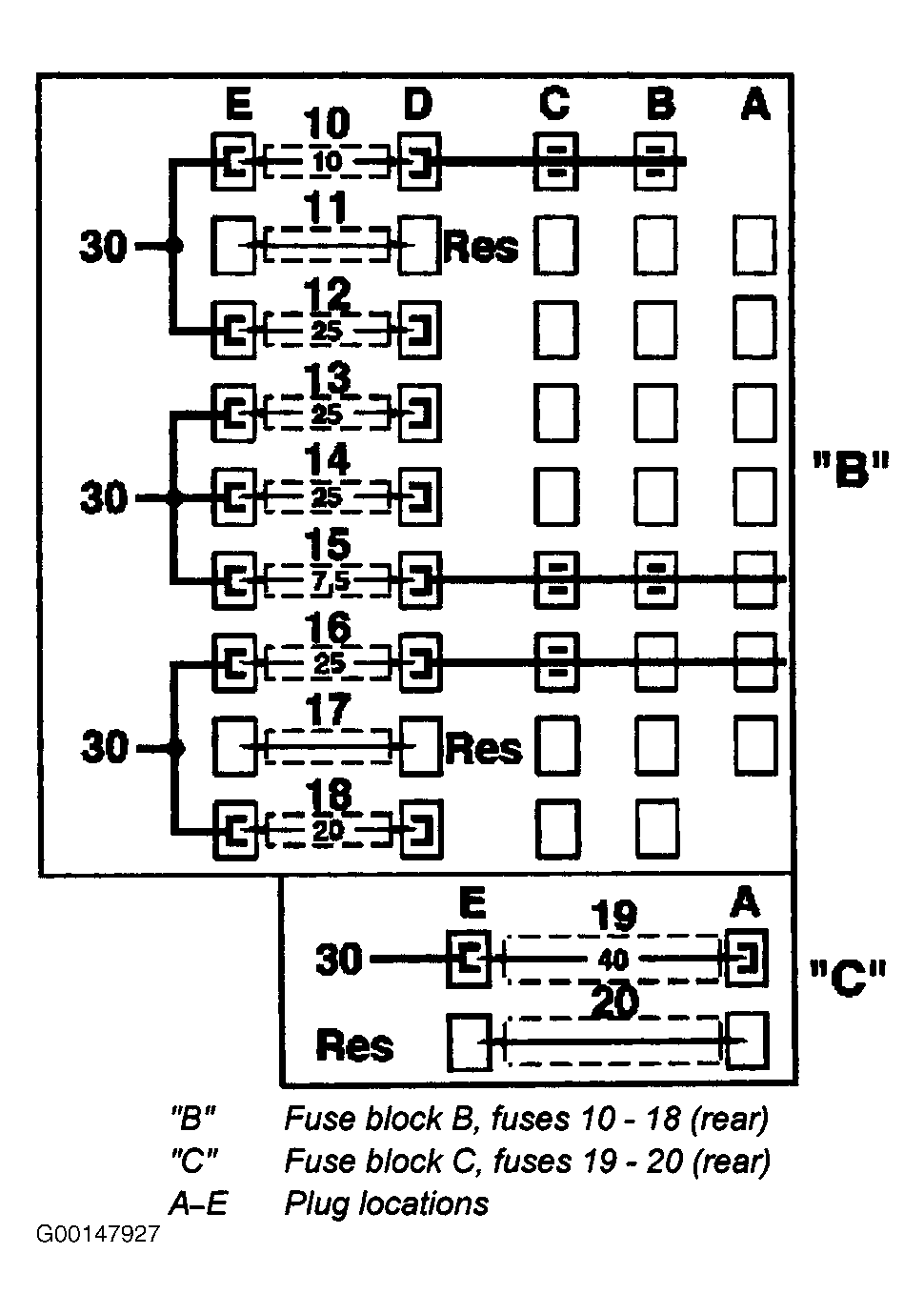

Fig 5: Locating Fuses On Fuse Blocks B & C Of Rear Fuse Box F4

G00147927

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

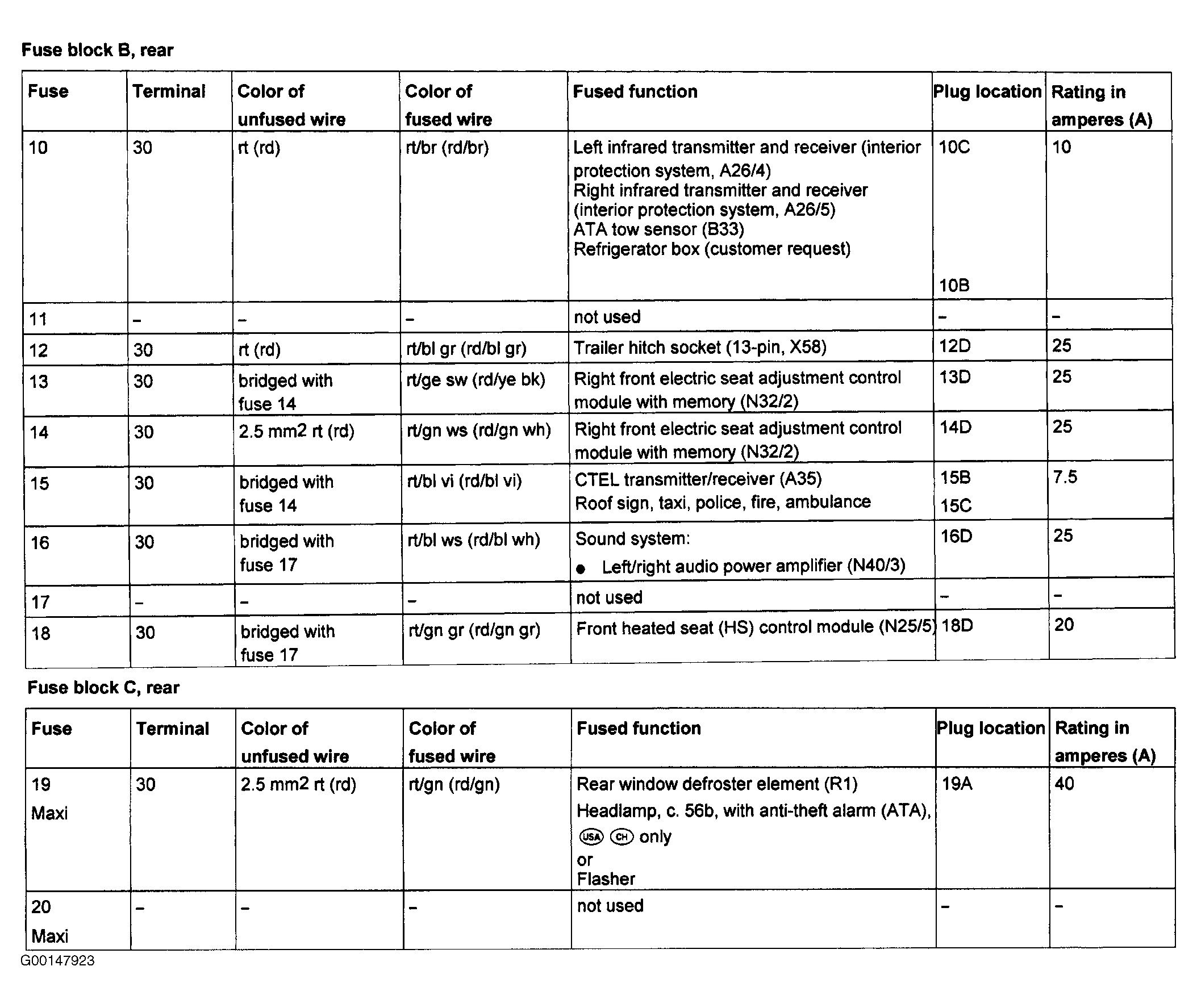

Fig 6: Identifying Fuses 10-18 On Fuse Block B & Fuses 19 & 20 On Fuse Block C Of Rear Fuse Box F4

G00147923

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
