Engine Compartment Fuse & Relay Box F1 (Fuse Blocks A-D & F)

NOTE: Engine compartment fuse and relay box F1 is located in left rear corner of engine compartment. See Fig 1 -Fig 8

Fig 1: Locating Engine Compartment Fuse & Relay Box F1

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Identifying Fuse Blocks A-D & F On Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

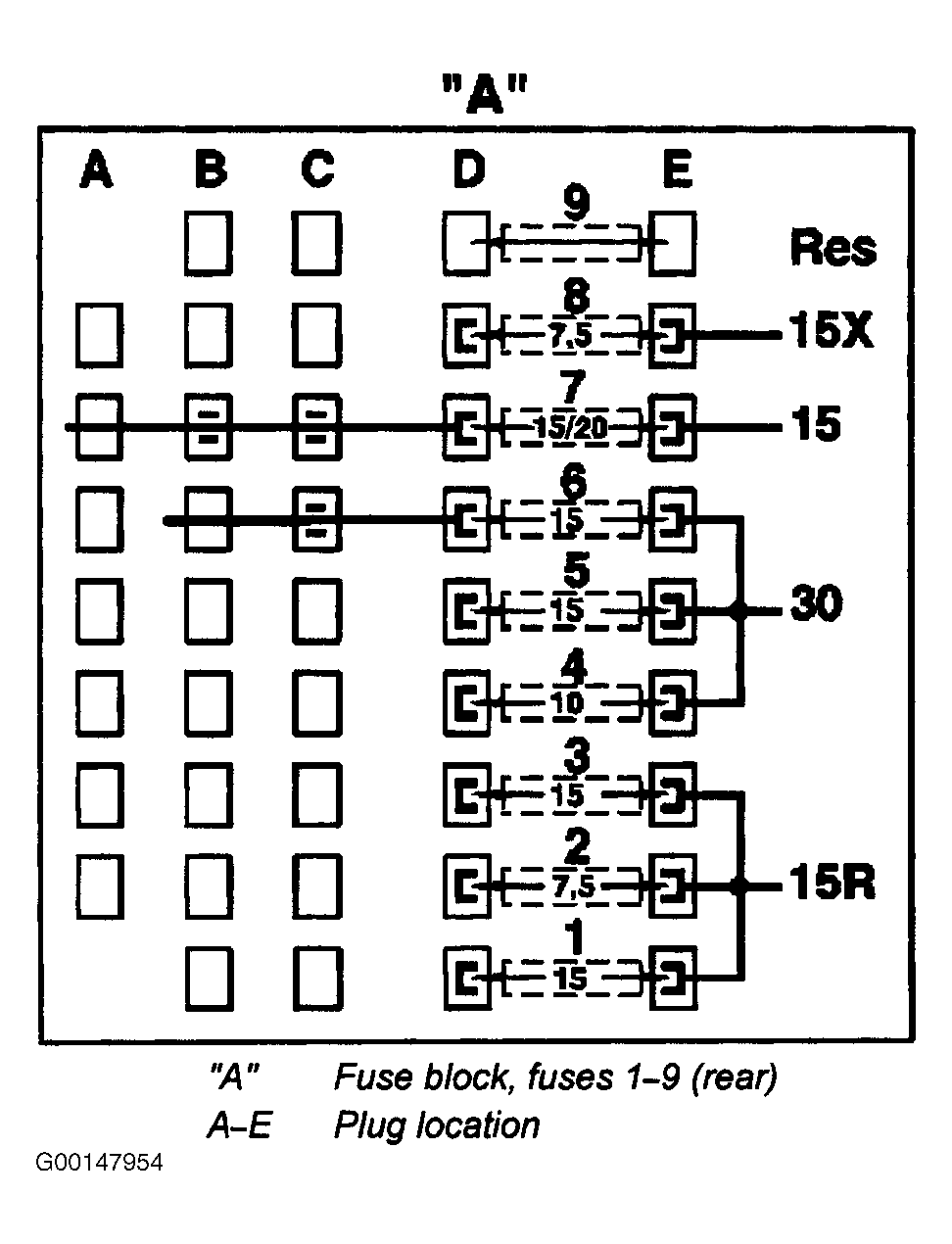

Fig 3: Locating Fuses On Fuse Block A Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

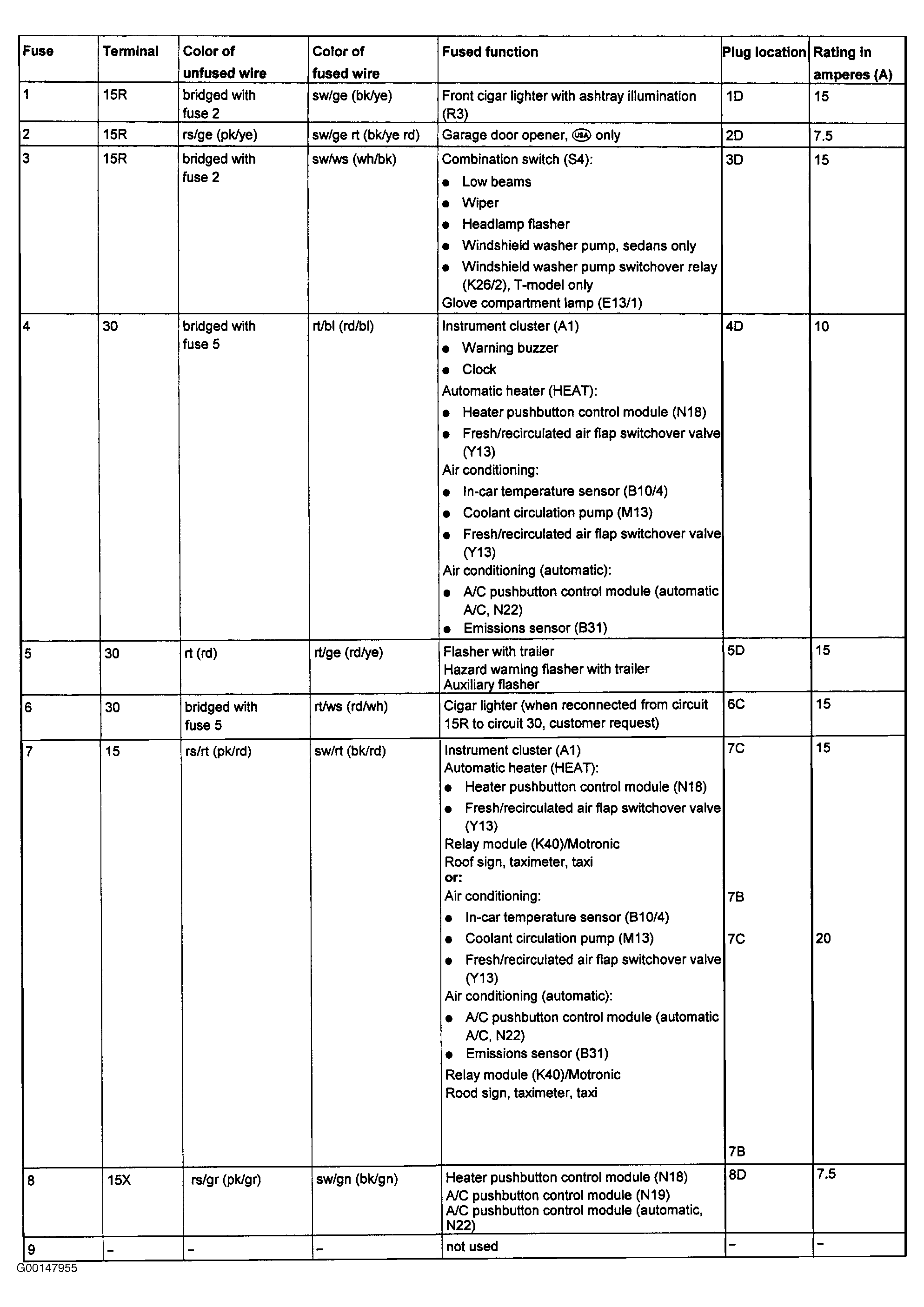

Fig 4: Identifying Fuses 1-9 On Fuse Block A Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

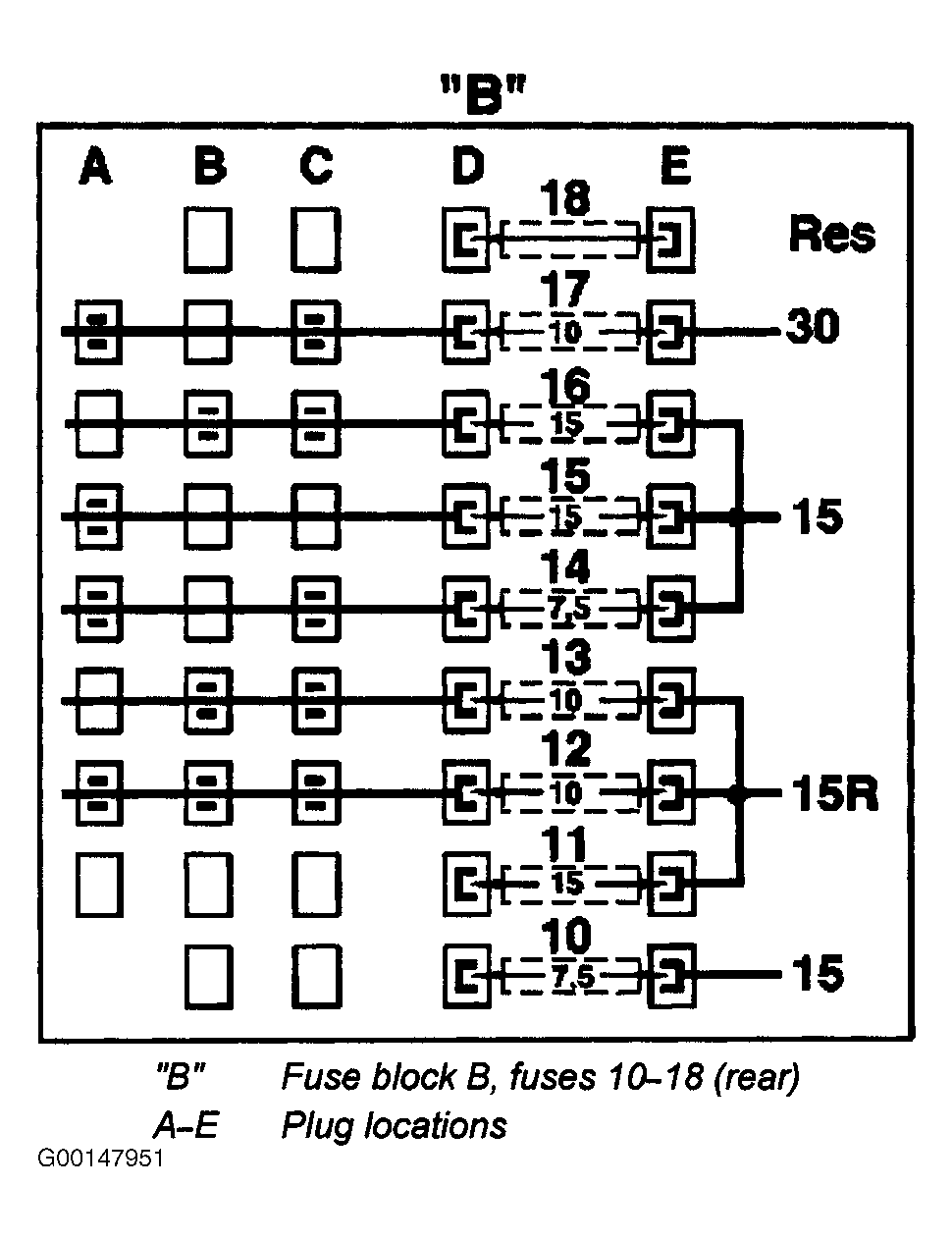

Fig 5: Locating Fuses On Fuse Block B Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

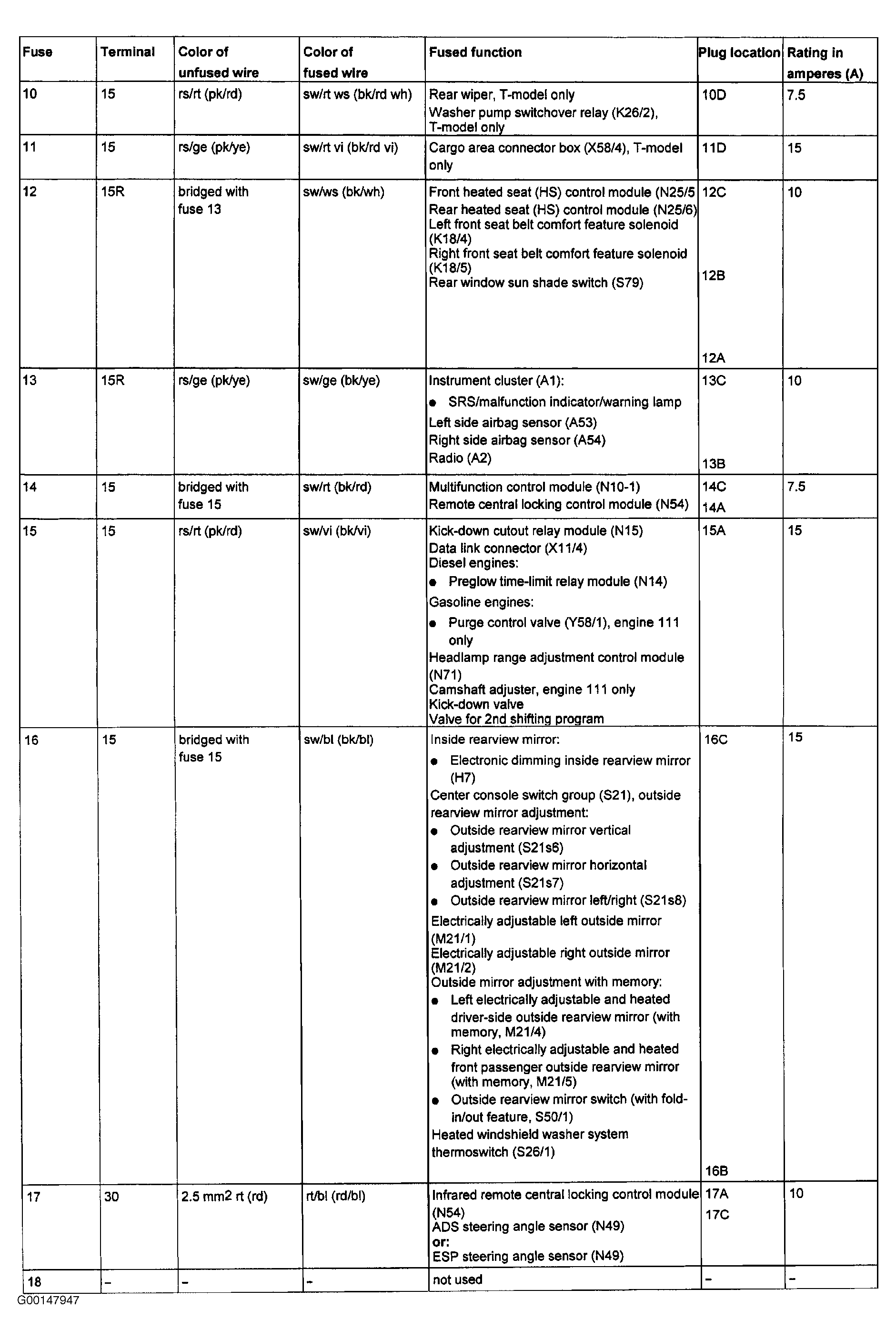

Fig 6: Identifying Fuses 10-18 On Fuse Block B Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

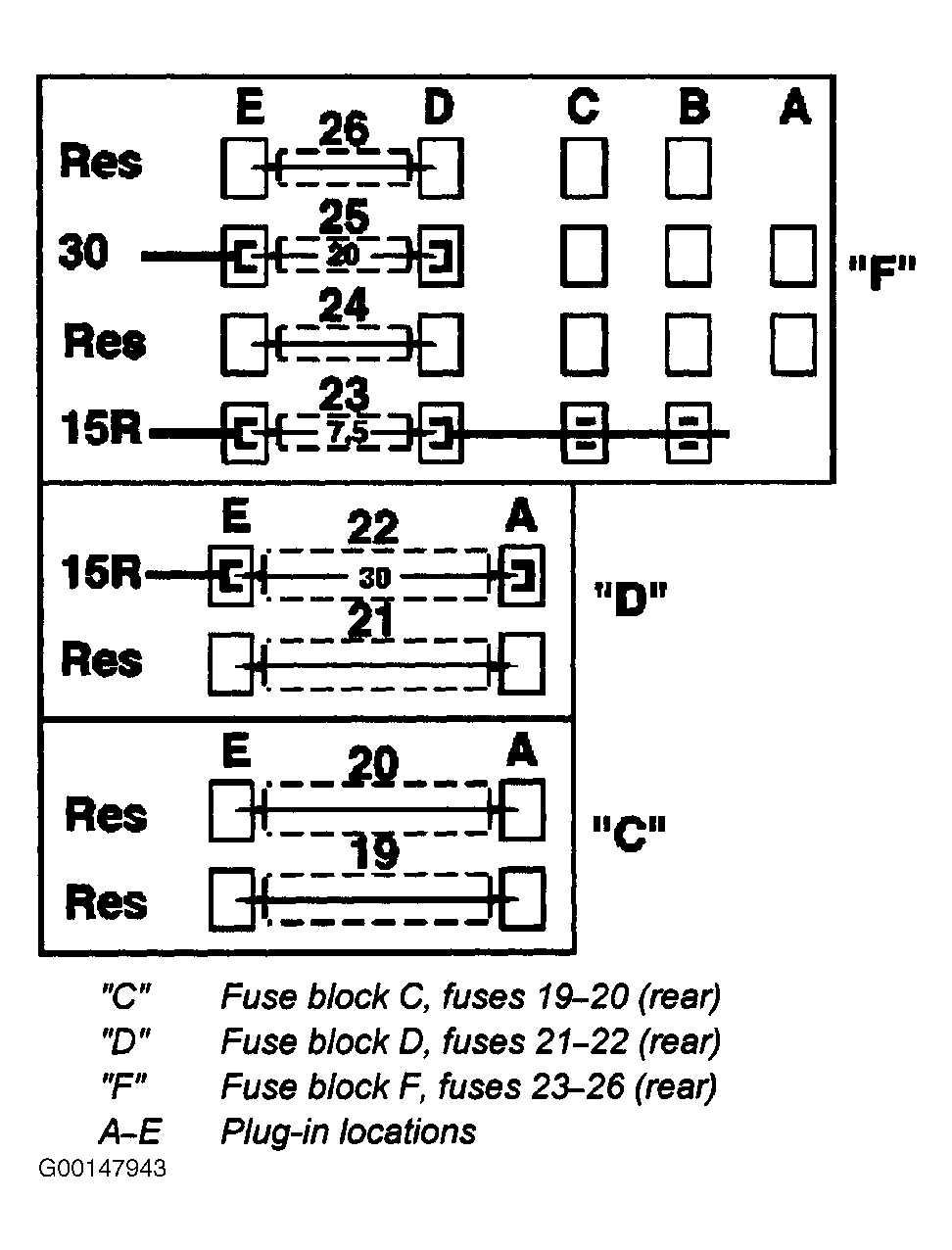

Fig 7: Locating Fuses On Fuse Blocks C, D & F Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

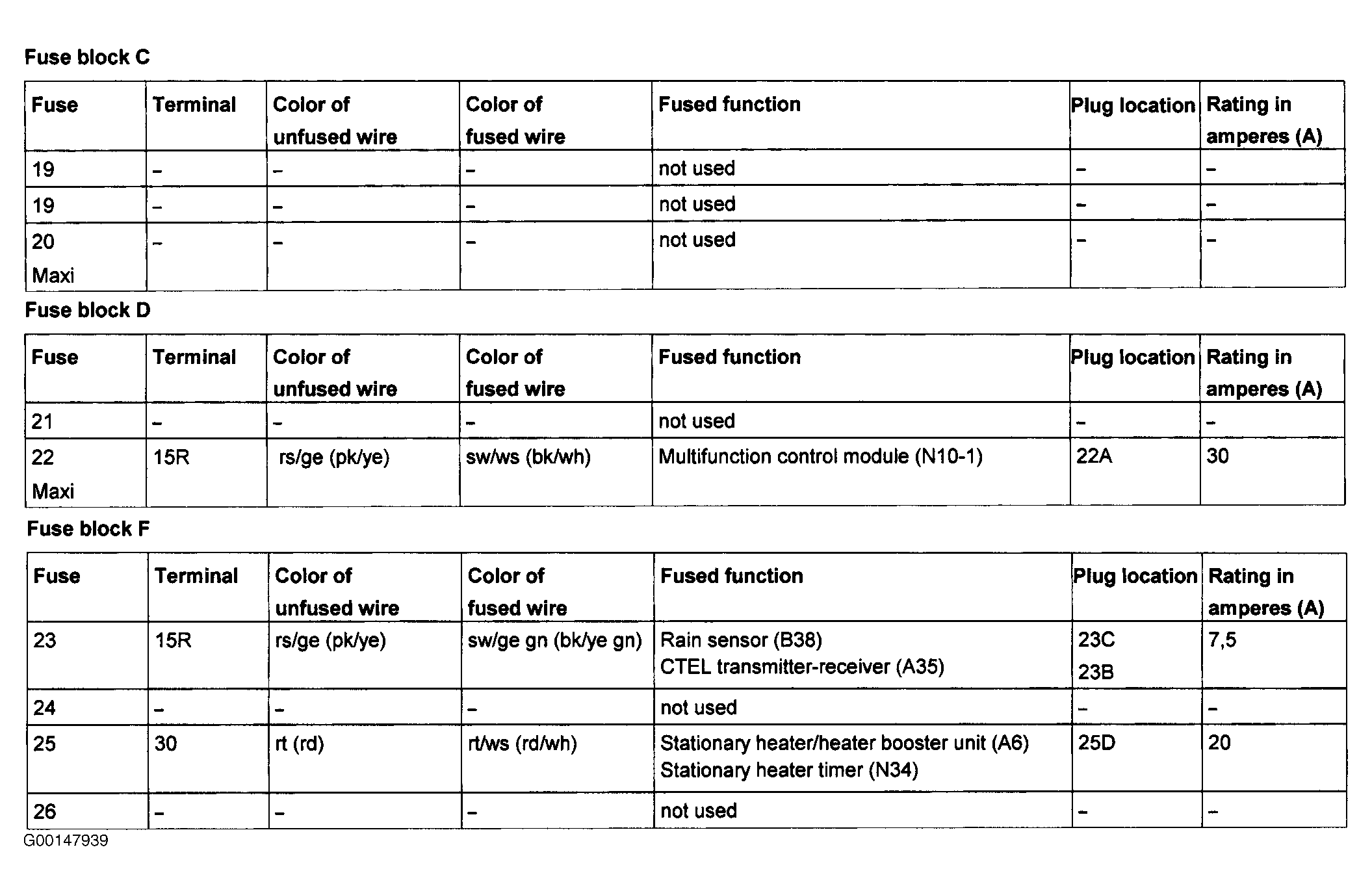

Fig 8: Identifying Fuses 19 & 20 On Fuse Block C, Fuses 21 & 22 On Fuse Block D & Fuses 23-26 On Fuse Block F Of Engine Compartment Fuse & Relay Box F1

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
